Fiberglass Geogrid

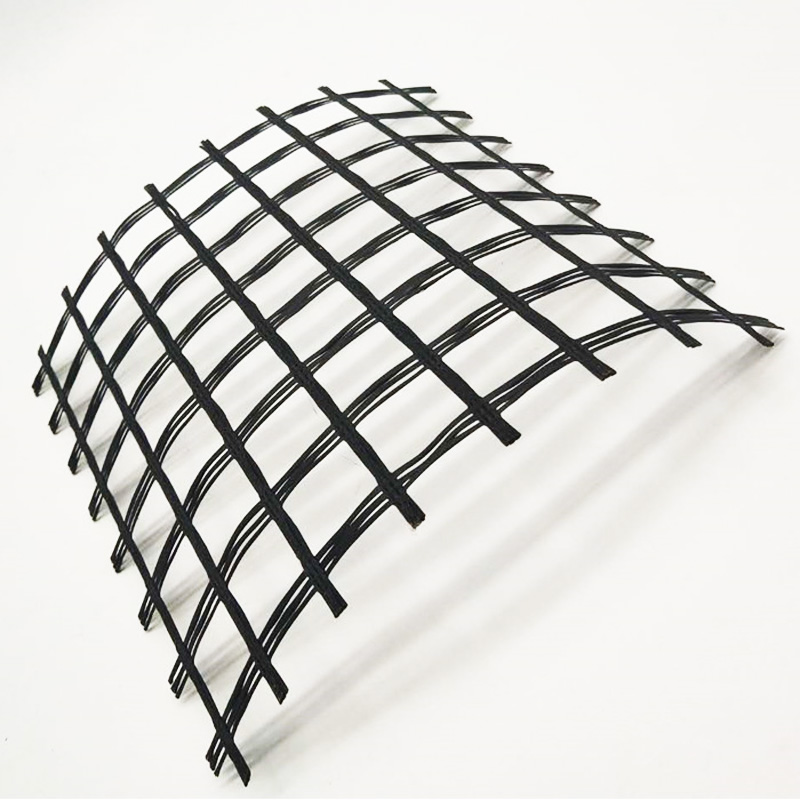

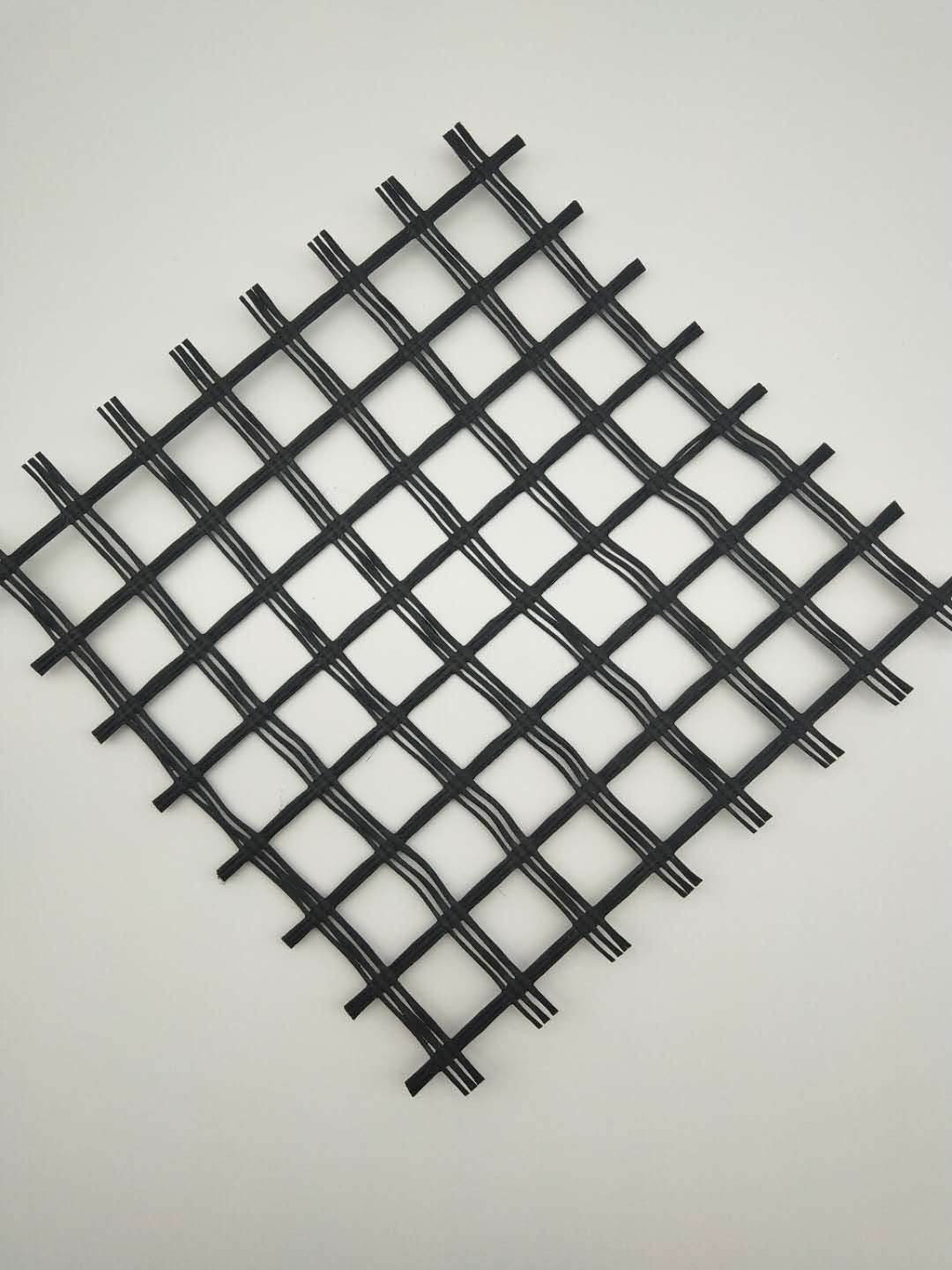

Fiberglass geogrid

Fiberglass geogrid

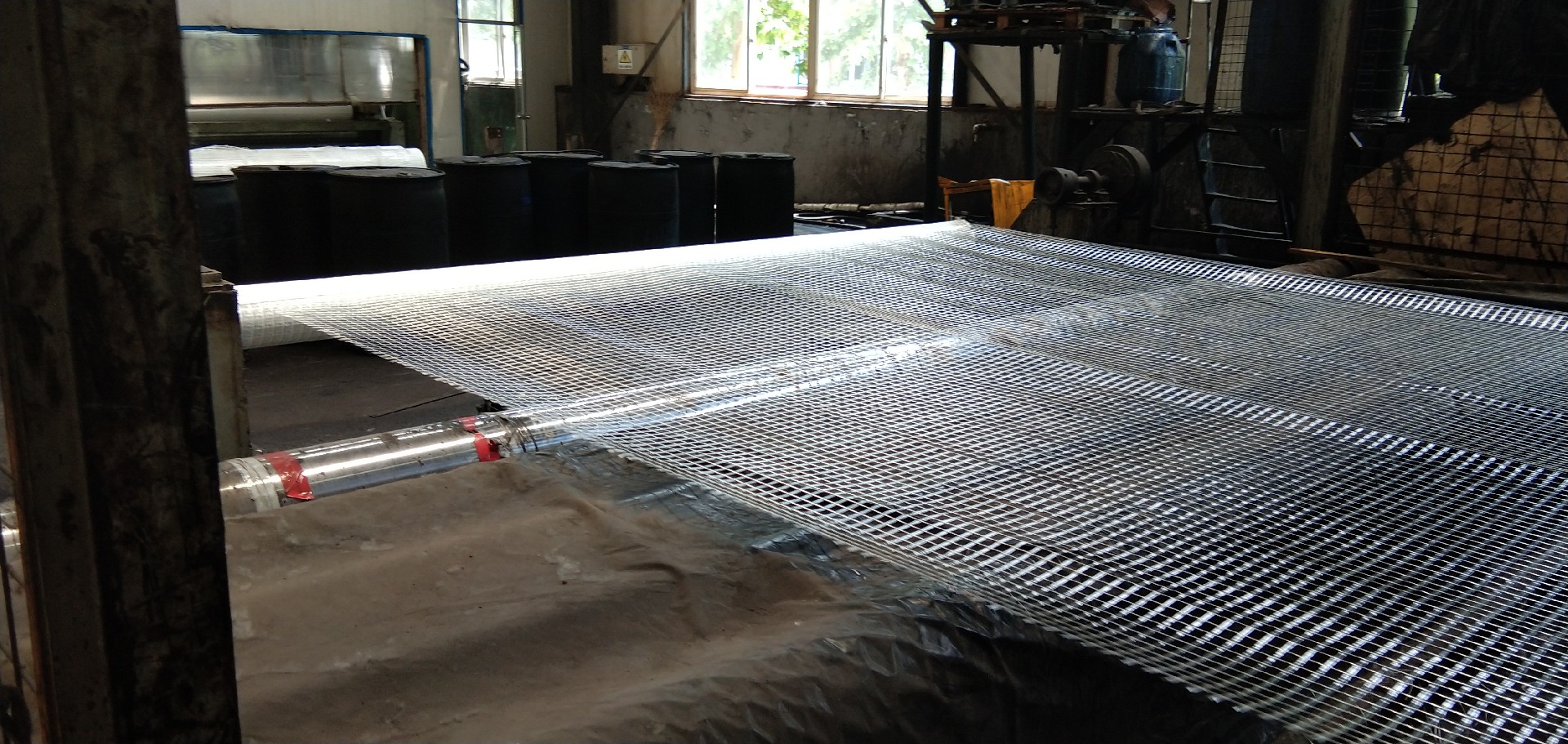

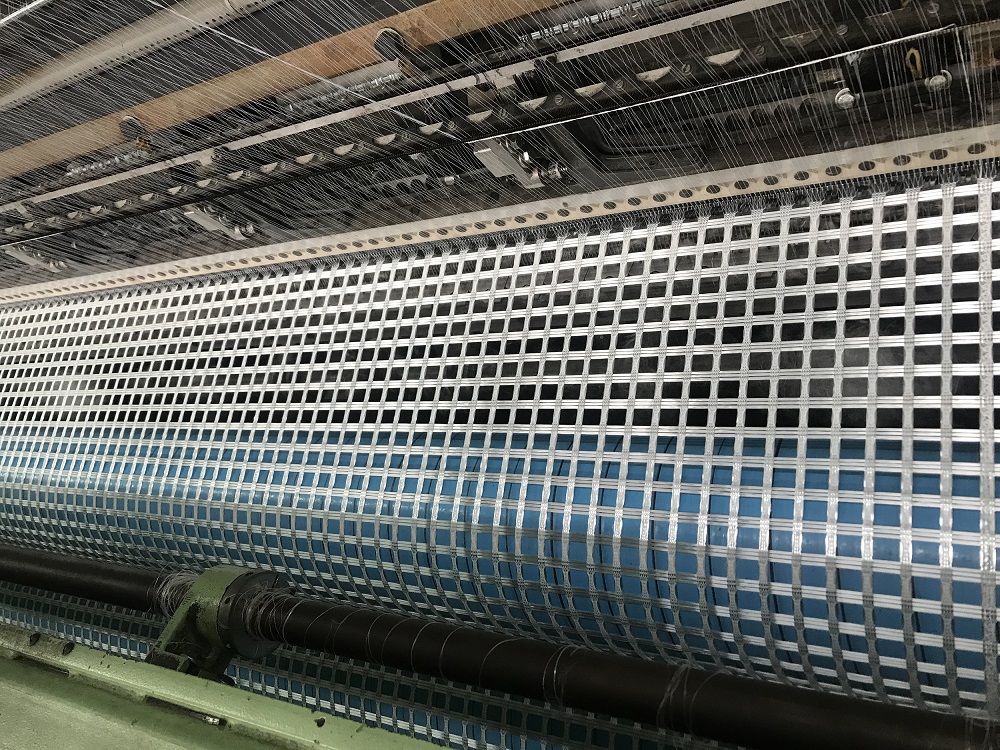

Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and rod bed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has features of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintain to prevent the road crackle.
Product Features:
High tensile strength,elasticity modulus and low elongation;Heat resistance,no creep deformation,stable physical ad chemical properties;Crackle-resistance in high or low temperature,or in road reflection;Excellent compatibility with asphalt and concrete of road surface,either soft or hard land;Compared with the trational road surface,it reduces the cost,prolong the service life,and avoid the reflection road crackle.

Application:
1.This product is also used to strengthen the soft land,such as highway,railway,airport, irrigation work,and the road bed.

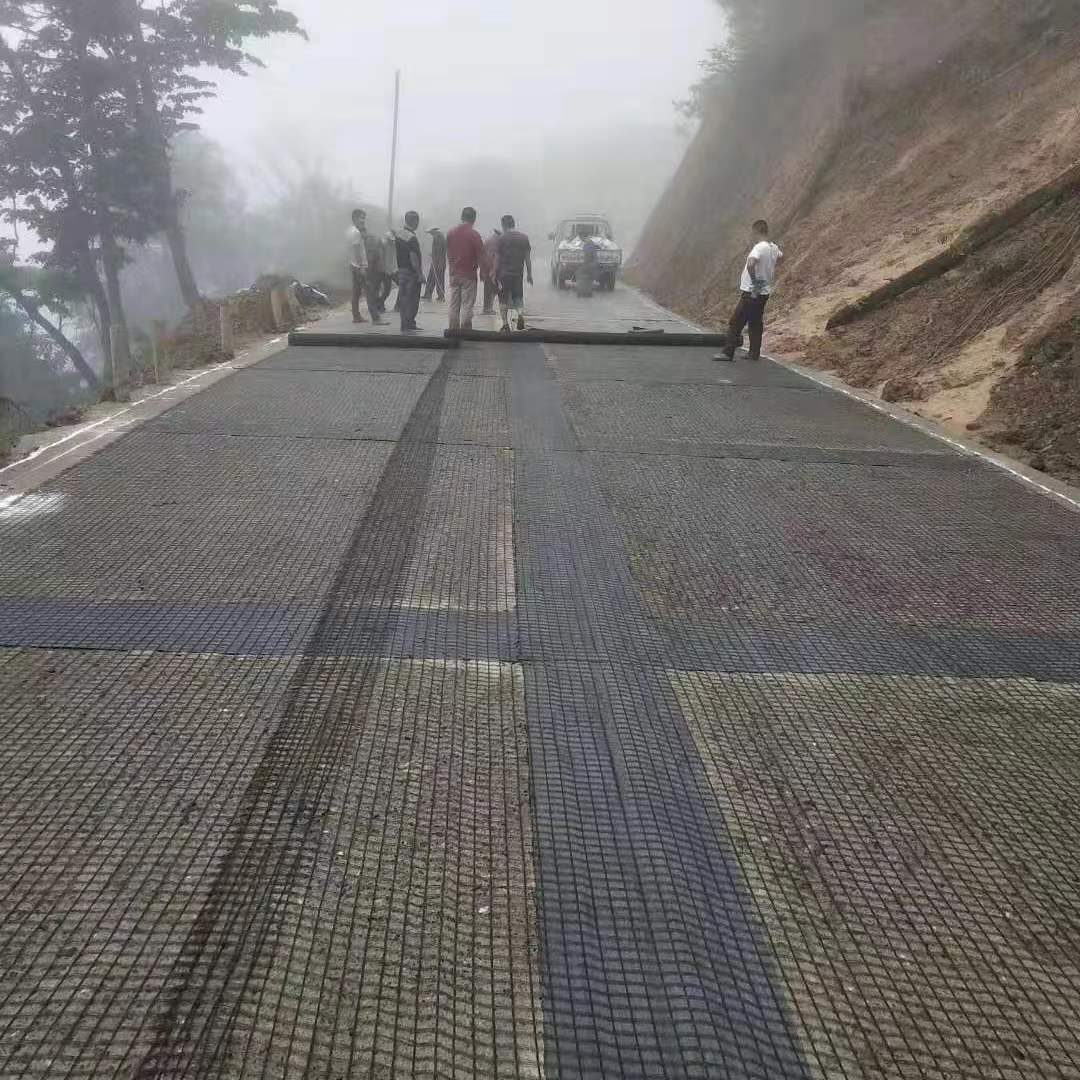

2. Reinforcement of roads and crack prevention.
3. Constructing new roads and repairing damaged sections of asphalt surfaces of roads motorways,parking,airport surface and access ways.
4.Expanding thoroughfares and road lanes.
5. Asphalt reinforcing at locations subject to intensive vehicle braking or accelerating,important junctions,bus stop etc

Technical data：

Specification		EGA 30-30	EGA 50-50	EGA 80-80	EGA 100-100	EGA 120-120	EGA 150-150	EGA 200-200	EGA 300-300
Mesh size(mm)		12.7×12.7 or 25.4×25.4 or 50.8×50.8
Breaking strength(kN/m)	Warp direction	30	50	80	100	120	150	200	300
Breaking strength(kN/m)	Across warp	30	50	80	100	120	150	200	300
Elongation at break(%)	Warp direction	3
Elongation at break(%)	Across warp	3
Working temperature(℃)		-100~280
Width≤(m)		2 or 3.95 or 4 or 5.9 or 6


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
