Technical details for the double wall DWC corrugated pipe machine:

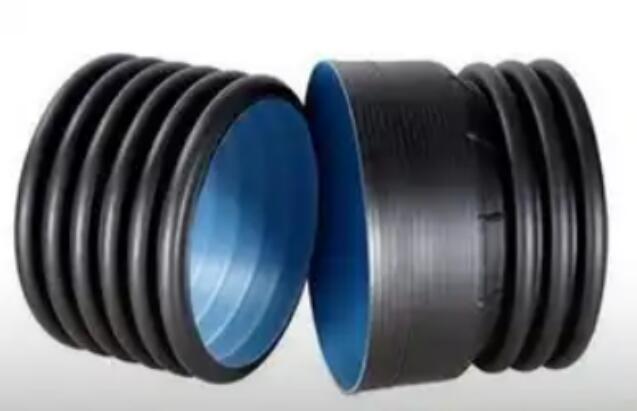

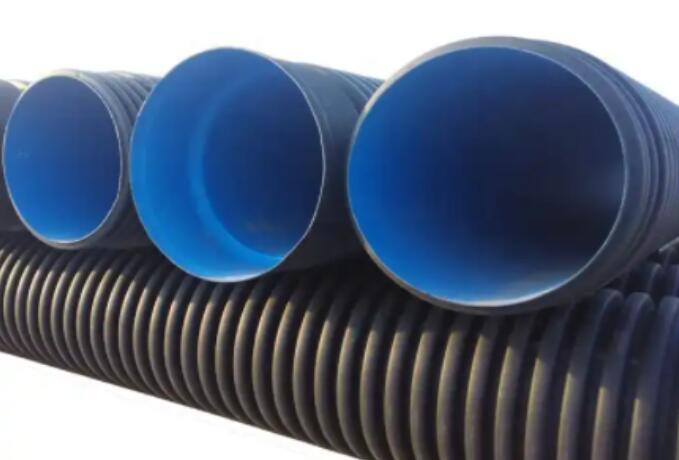

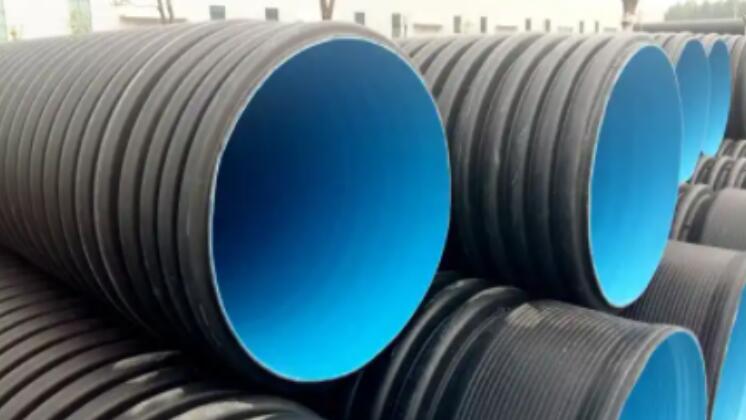

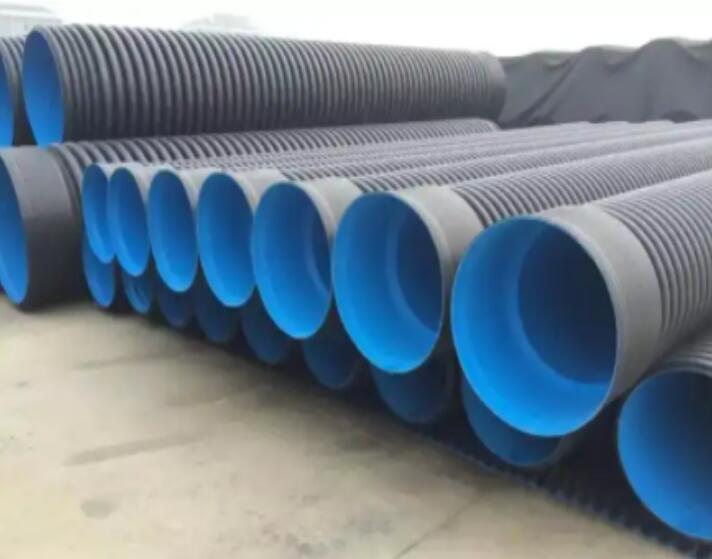

315mm hdpe corrugated pipe making machine/Double wall corrugated DWC pipe machine
Model | SBG110 | SBG250 |
Pipe diameter (mm) | DN/ID 40-110 | DN/ID 110-250 |
Die head,mould | 40-110mm | 110-250mm |
Forming machine model | SBGC-110 | SBGC-250 |
Spray cooling tank | SGL-110 | SGL-250 |
Non-dust cutting machine | SGQ-110 | SGQ-250 |
Stacker | SGD-250 | SGD-500 |
Production capacity(kg/h) | PE:160 | PE:230 |
Mold quantity(pair) | 72 | 72 |
Product speed | 3-4 m/min | 2-3 m/min |
Advantage of our Plastic DWC double wall corrugated pipe machine
1. The main machine adopts special designed high efficiency screw which is specially used for polyolefin,it has the features of stable performance and high effiency.The machine has two independence extruders,which can realize both inside and outside layer with different material and colors.
2. Composite extrusion die head with specially helical structure to make the wall thickness unifom and stable production.
3. The forming machine has automatic power-off protection device.The forming machine an antomatically exit from the die head to avoid equipment failure in case of electrucity cut off suddenly.It also equipped with new type high transmitting ratio reducer, easy to operate and mainteance.
4. The corrugated forming system is in combination with water cooling and air cooling to sensure high production speed
continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smmothly with high precision to ensure the products quality stability.
5. Mould adopts specialy alumium alloy material and high precision die casting forming mould method,it has the advanages of high precision,high stremgth,good wearability and better heat dissipation performance.
6. Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.
Advantage of our Plastic DWC double wall corrugated pipe machine
1. The main machine adopts special designed high efficiency screw which is specially used for polyolefin,it has the features of stable performance and high effiency.The machine has two independence extruders,which can realize both inside and outside layer with different material and colors.
2. Composite extrusion die head with specially helical structure to make the wall thickness unifom and stable production.
3. The forming machine has automatic power-off protection device.The forming machine an antomatically exit from the die head to avoid equipment failure in case of electrucity cut off suddenly.It also equipped with new type high transmitting ratio reducer, easy to operate and mainteance.
4. The corrugated forming system is in combination with water cooling and air cooling to sensure high production speed
continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smmothly with high precision to ensure the products quality stability.
5. Mould adopts specialy alumium alloy material and high precision die casting forming mould method,it has the advanages of high precision,high stremgth,good wearability and better heat dissipation performance.
6. Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
