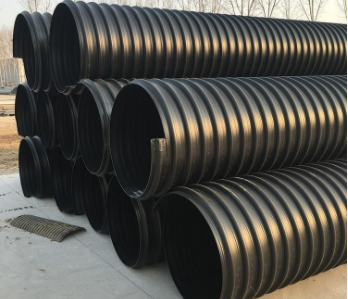

Hdpe Steel Strip Reinforced Corrugated Pipe



Project
Requirement
Ring stiffness KN/m²
SN≥4KN/m²
SN≥8KN/m²
Impact property(TIR)/%
TIR≤10%
Ring flexibility
Smooth style, no reverse bending, no cracking,
no separation of the two walls
Creep property
≤4
Oven test
No bubbles, no layers, no cracks
Seal test
Pressure 0.05MPa, constant temperature 15min,
no leakage, no fracture
Specifications
Nominal diameter
DN/ID200
200
300
400
500
600
800
1Minimum mean
internal meridian
Dim,min
195
294
392
490
588
785

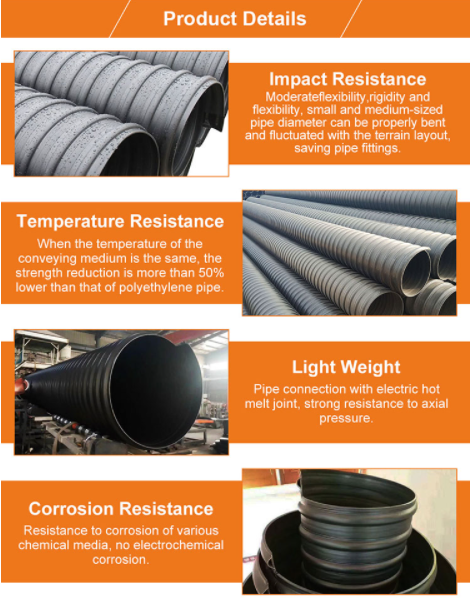

Features.
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).

Specification:
Size: DN200 to DN800.
Ring stiffness: SN4, SN8.
Connection: Socket with rubber ring.
Length: 6 Meters/piece.

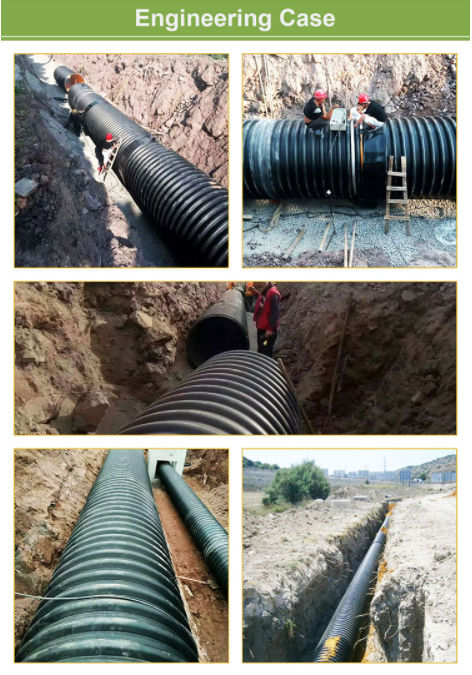

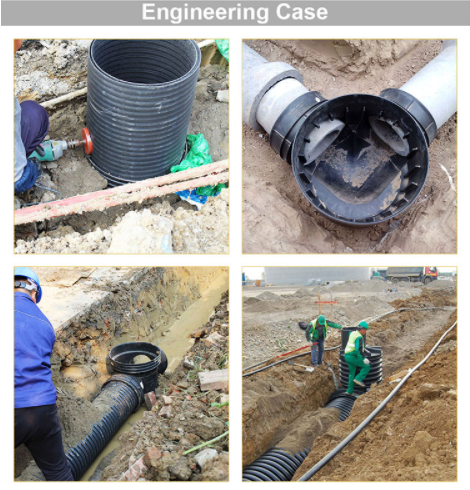

Application:
> Sewer and drainage
> Frontage drains for terrace and other residential units in housing schemes
> Perimeter drains for commercial, industrial units and individual factories
> As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space
> As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains









FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
