I.Details:

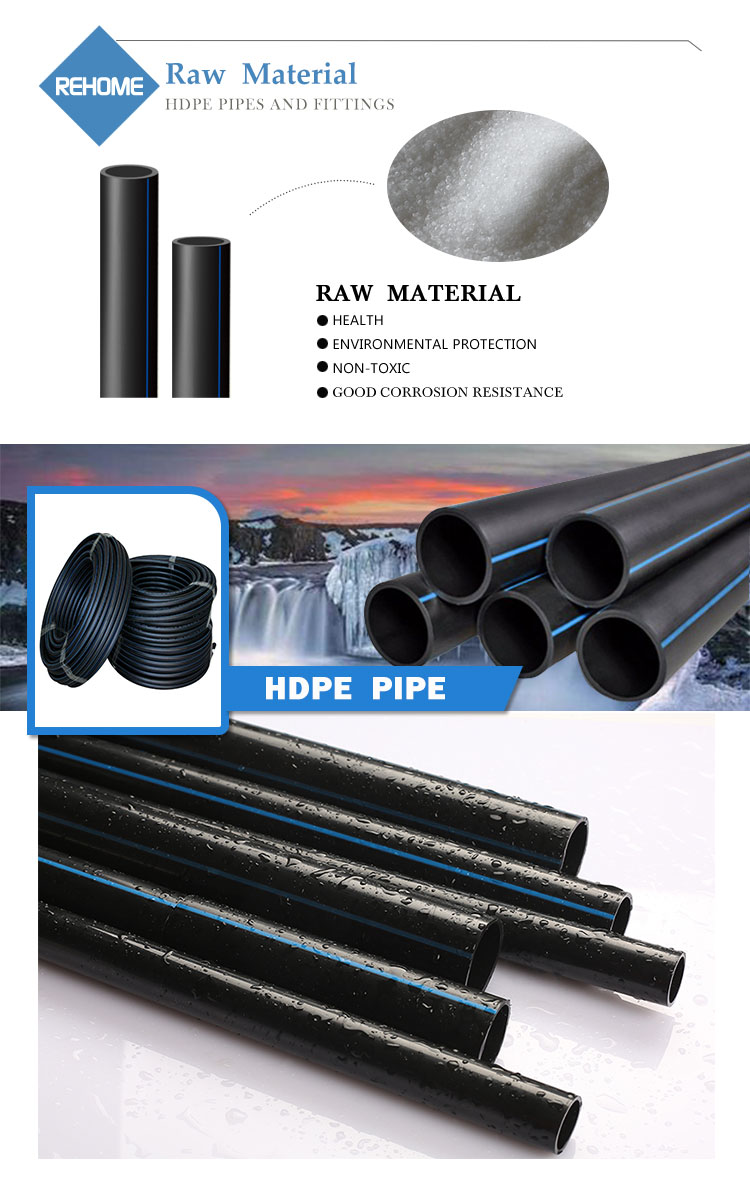

ITEMS | HDPE PIPE |
MATERIAL | POLYETHYLENE (PE100) |
PRESSURE RATING | PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25 |
SIZE RANGE | 16-630MM |
STANDARD | ISO 4427-2, EN 12201-2, AS/NZS 4130, BS 6920, GB/T 13663. |
COLORS | BLACK, BLUE |
CERTIFICATE | ISO14001, OHSAS18001, ISO9001, CE |
CONNECTION | SOCKET FUSION, BUTT FUSION, ELECTRIC FUSION |
II.Advantage:
(1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
(3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
(4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
(5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
(6) Long Life: more than 50 years under normal conditions.
(7) Recycled and Environment-friendly.
III.Specification:
Spec(mm) | Thickness(mm) | Package(m/bale) | |||
S5 1.25mpa | S4 1.6mpa | S3.2 2.0mps | S2.5 2.5mpa | ||
20 | 2.0 | 2.3 | 2.8 | 3.4 | 120 |
25 | 2.3 | 2.8 | 3.5 | 4.2 | 120 |
32 | 2.9 | 3.6 | 4.4 | 5.4 | 80 |
40 | 3.7 | 4.5 | 5.5 | 6.7 | 60 |
50 | 4.6 | 5.6 | 6.9 | 8.3 | 40 |
63 | 5.8 | 7.1 | 8.6 | 10.5 | 24 |
75 | 6.8 | 8.4 | 10.3 | 12.5 | 16 |
90 | 8.2 | 10.1 | 12.3 | 15.0 | 8 |
110 | 10.0 | 12.3 | 15.1 | 18.3 | 8 |
160 | 14.6 | 17.9 | 21.9 | 26.6 | 4 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
One touch phone call, we sincerely provide 24-hour service for you~
