PE double wall corrugated pipe has a happycleanenvironment,energy,health,
goodsealingperformance,corrosionresistance,shakeresistance,goodquality,cheap,
easy to installandusetheadvantage.PEdoublewallcorrugatedpipeissuitablefor
clean rainwater harvesting and large diameter drainage systems.
High density polyethylene double-wall corrugated pipe | ||||
Nominal diameter | Minimum average diameter | The minimum inner thick wall | Minimum laminate thickness | The length of the joint |
mm | mm | mm | mm | mm |
200 | 195 | 1.1 | 1.5 | 54 |
300 | 294 | 1.7 | 2.0 | 64 |
400 | 392 | 2.3 | 2.5 | 74 |
500 | 490 | 3.0 | 3.0 | 85 |
600 | 588 | 3.5 | 3.5 | 96 |
700 | 685 | 4.0 | 4.0 | 102 |
800 | 785 | 4.5 | 4.5 | 118 |
project | indicators | |
The ring stiffness | SN≥4kN/square meters | SN8≥8N/ square meters |
Impact properties(TIR)/% | ≤10 | |
Flexible ring | Sample sleek, no reverse bend, no broken, two no release | |
Oven test | No bubbles, no delamination, no cracking | |
Creep ratio | ≤4 | |
Characteristics :
1) Smooth inner surface of the pipe insures large input flow with small fluid friction. The pipe is not easy to block.
2) Connected easily with rubber rings, easy to install.
3) Light weight makes pipe transportation more convenient.
4) Flexible connection to insure the pipe operate well after unevenly movement of the earth, not easy to leak.
5) Chemically stable, corrosion-resistant, non-toxic, non-polluting, an environmentally friendly products.
6) Economical compared other traditional pipes.
7) Life span can be 50 years buried underground on normal conditions

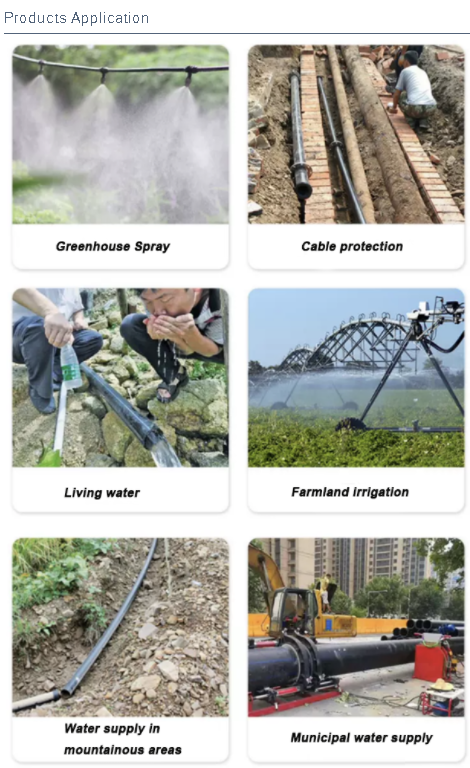

Application:
Water Supply System
1. Transportation and distribution system
2. House service connection
3. Geo-thermal pipe for room heating & hot water system
Industrial
1. For Effluents, chemicals and treated/untreated waster disposal
2. As Hydro Transport System for handling and conveyance iron ore slurry, - coal / cement slurry and slurry transportation in mines
3. For conveyance of edible oil, fruit pulps, juices, milks and other food materials.
4. As ducts for ventilation and air conditioning
Environmental Protection
1. Rehabilitation of existing sewer
2. Effluent and waste treatment plant pipes
3. Dust suppression piping systems in cement industry
4. Sand slurry disposal pipes in dredging
5. De-gassing pipes in water effluent marine outfalls
Agriculture
1. Piping for submersible and jet pumps
2. Suction and delivery pipes
3. Sprinkler piping for irrigation
Other
1. Transportation of chemicals, solids, gas and oils
2. Underwater pipelines. / Desalination plants
3. Bore wall delivery lines
4. Telecommunication cable ducting
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
