HDPE Winding Reinforced Carat

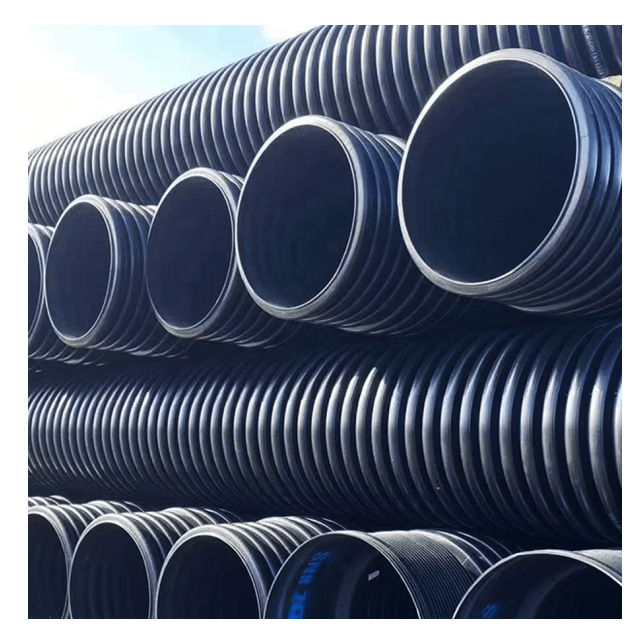

HDPE strengthened winging pipe

Products Description

HDPE strengthened winging pipe is a kind of special-shaped pipe with smooth inner wall and spiral strengthening outer wall. HDPE strengthened winging pipe normally divided into B type and C type, which are green and flexible, use high density polyethylene as raw material, produced by filament winding process in the states of hot-melt, gradually cooled by means of rolling air cooling and spraying in thermal state and before demolding. It is available for a wide range of diameters from 300 mm to 3000 mm, can be connected by socket-joint.Krah pipe has all the features: high strength, light weight, corrosion resistance, no leakage, good sealing and easy construction etc., be widely used in drainage projects.

Product Specification

Nominal OD (dn)	Min. mean diameter	The wall thickness of the min. layer pressure	Min. inner wall thickness
mm	mm	mm	mm
200	196	1.5	1.7
300	294	1.7	2
400	392	2.3	2.5
500	490	3	3
600	588	3.5	3.5
700	673	4.1	4
800	785	4.5	4.5
900	885	5	5
1000	985	5	5
1100	1085	5	5
1200	1185	5	5
1300	1285	6	5
1400	1385	6	5
1500	1485	6	5
1600	1585	6	5
1700	1685	6	5
1800	1785	6	5
1900	1885	6	5
2000	1985	6	6
2100	2085	6	6
2200	2185	7	7
2300	2285	8	8
2400	2385	9	9
2500	2485	10	10
2600	2585	10	10
2700	2685	12	12
2800	2785	12	12
2900	2885	14	14
3000	2985	14	14

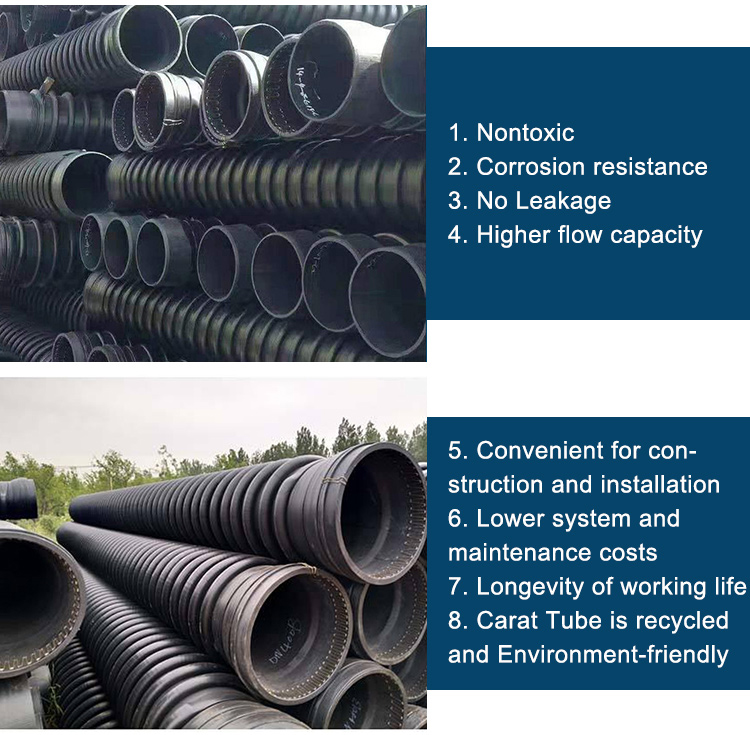

Our Advantages

Application Field


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
