Plastic biaxial geogrid




PP Biaxial Geogrid

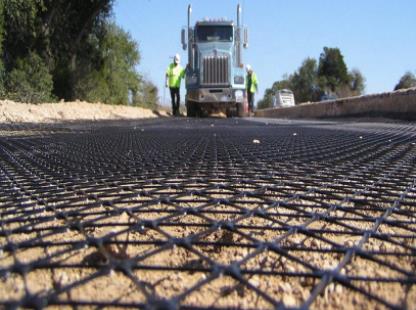

Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the US and worldwide.Biaxial Geogrid is Strata’s innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.

Biaxial Geogrid  provide structural reinforcement of roads and parking areas through excellent stiffness and interlock capabilities.

Application:
1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.

Technical  data:

Index Properties Test Method Unit GG1515 GG2020 GG3030 GG4040
MD  TD MD  TD MD    TD MD  TD
Polymer -- -- PP PP PP PP
Minimum Carbon Black ASTM D 4218 % 2 2 2 2
Tensile Strength@ 2% Strain ASTM D 6637 Kn/m 5      5 7      7 10.5  10.5 14      14
Tensile Strength@ 5% Strain ASTM D 6637 Kn/m 7      7 14      14 21      21 28      28
Ultimate Tensile Strength ASTM D 6637 Kn/m 15      15 20      20 30      30 40      40
Strain @ Ultimate Strength ASTM D 6637 % 13      10 13      10 13      10 13      10
Structural Integrity
Junction Efficiency GRI GG2 % 93 93 93 93
Flexural Rigidity ASTM D 1388 Mg-cm 700000 1000000 3500000 10000000
Aperture Stability COE Method mm-N/deg 646 707 1432 2104
Dimensions
Roll Width -- M 3.95 3.95 3.95 3.95
Roll Length -- M 50 50 50 50
Roll Weight -- Kg 39 50 72 105
MD denotes Machine direction. TD denotes transverse direction.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
