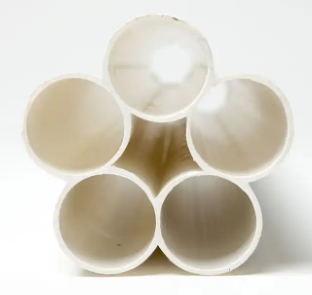

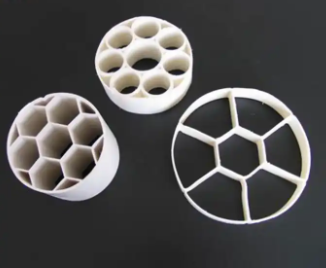

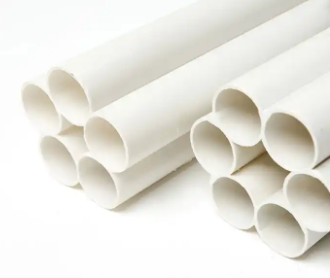

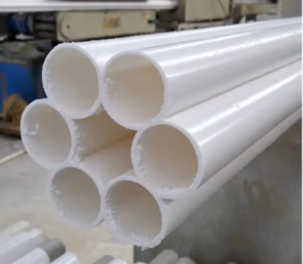

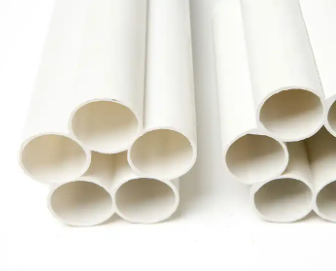

Honeycomb pipe


Specification
item
PVC Cable Casing
Place of Origin
China
Model Number
JHL-NYGG
Material
PVC
Specification
from dn20mm to dn 1600mm
Length
6m or 8m or customize
Thickness
from 2.3mm to 61.6mm
Standard
ISO 4427:1996; BS 6920
Processing Service
Cutting
Item
PVC Cable Casing
Color
White, red, blue
Longitudinal Reversion, % (110℃)
≤3
Oxidation Induction Time, min(200℃)
≥20
Extension Rate at Break, %
≥350
Certification
ISO Certificate
Connection
Glue
Application
Cable Sleeve
Product Paramenters
Holes
Unit:mm
Direct buried pipe plant size 6m
Outside diameter
Inner hole diameter
Wall thickness
tolerance
Note
7
Φ108
Φ32
2.7
±0.5
Roll:100M
5
Φ93
Φ32
2.6
±0.5
Roll:150M
5
Φ82
Φ28
2.4
±0.5
Roll 200M
5
Φ76
Φ26
2.4
±0.5
Roll 200M

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
