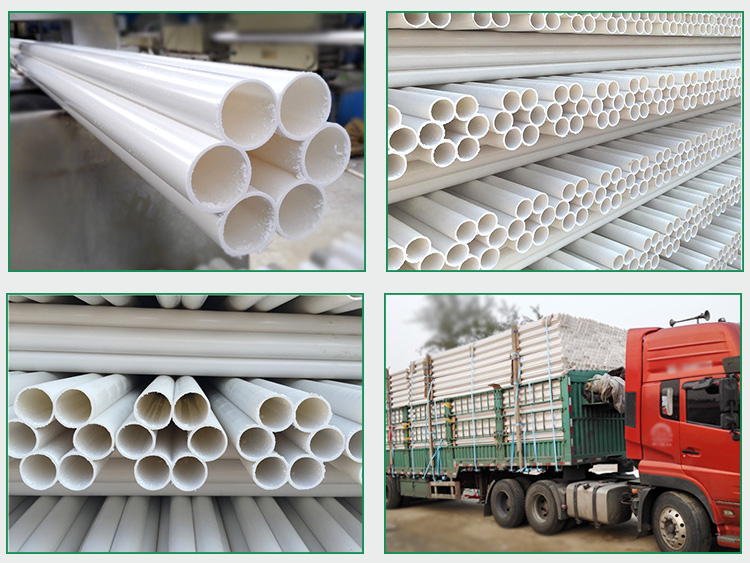

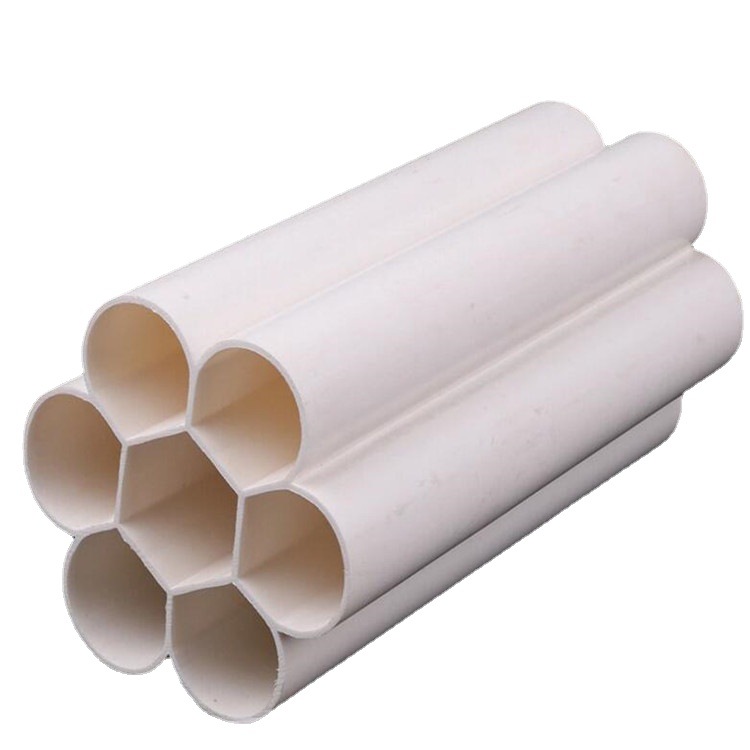

PVC/PE Honeycomb Pipe

Honeycomb pipe

Production

Material	High quality, environment-friendly PVC matetial
Range	These kinds of product could be widely used for spring hose, water pipe, PVC bag with embedding, bag handle accessories, hang act the role of knitting process, tag line, fishing gear fittings of lighting industry or other aspects as you like.
Size	5mm can be customized
Color	Transparent, white, red, blue... any color you want is available.
Packaging	500m/roll etc. Plastic bag and with carton outside, or we can pack them depend on your request.
Sample	3~5 working days or right now if we have stocked.
Production	7~15 working days and also according to your quantity.
Delivery	By sea, by express, by air.

Features:

 The product adopts a porous integrated structure, with compact structure and uniform stress;
 The raw material of the product is specially selected combined polyethylene, which has good low-temperature resilience, flexibility, compression resistance and impact resistance;
 The friction resistance of the inner wall of the pipe is small, the cable threading is fast, and the construction is simple and easy;
 The use temperature of the product is+80 ℃ - 40 ℃, the construction temperature is below 10 ℃, and the low temperature brittleness is good, which can be applied in tropical and cold regions;
The product has multiple hole positions, which can reserve pipe holes, improve the utilization rate of communication hole positions, and has significant social and economic benefits.

Specification (mm)
Product name	Outer diameter	Inner Diameter	Thickness	Tolerance	Remark
Special 9 hole	φ115	φ32x24 φ28x2 φ 26x4	2.2	±05	Coil pipe option
9 hole	φ115	φ28x8	2.2	±05	Coil pipe option
7 hole	φ10	φ432.6	2.2	±05	Coil pipe option
5 hole L	φ100	φ32x5	2.2	±0.5	Coil pipe option
5 hole M	φ88	φ28x5	2.2	±0.5	Coil pipe option
5 hole S	φ76	φ26x5	2.0	±0.5	customized
5 hole special	φ100	φ45x1 φ32x2 φ28x2	2.2	±0.5	Coil pipe option
3 hole	φ70	φ32x3	2.0	±05	customized

Application:

It is widely used in broadcasting, telecommunications and other industries, and can also
be used as a pipe for municipal, highway, bridge and buried line sheath. It is an ideal new type of casing.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
