PVC waterstop, being embedded in the concrete joints,
acts as a continuous watertight diaphragm to prevent any seepage of
liquids in constructions joints which are subject to hydrostatic
pressure. It is designed for expansion or contraction joint; meanwhile,
it can accommodate lateral and transverse movements which make it
capable to suit the moving joints.
The PVC waterstop is extruded form an elastomeric plastic material
including high grade polyvinyl chloride, special resin and some chemical
additives such as plasticizers and stabilizers.
Product Advantage:
· High tensile strength.· Superior elongation capability.· Excellent
inherent elasticity and impermeability· High resistance to acids, ozone,
seawater even diesel oil.· Extremely alkalis, chlorinated water and
other waterborne chemicals resistant.· Not susceptible to fatigue
deterioration as with metal or rubber.· High quality meet even exceed
the industrials standard.· Never discolor concrete.· No electrolytic
action with surrounding metals.· Capable to withstan
Application:
It is used to almost every strategic concrete structure such as Dams,
Canals, Over Head/Under Ground Water Tanks, Swimming Pools, Basement,
Bridges, Road Embankments, Retaining Walls, High-rise buildings,
Multi-storeyed Buildings.
Technical Data:
PHYSICAL PROPERTIES | TEST METHOD | Premium Grade |
Tensile Strength |
ASTM D 638 Type IV | 13 MPa |
Ultimate Elongation |
ASTM D 638 Type IV | 340% |
Low Temp. Brittleness | ASTM D 746 |
-38° C (-37° F) |
Tear Resistance |
ASTM D 624 Die “B” | 50 kn/m |
Modulus of Elasticity |
ASTM D 638 Type IV | 10 MPa |
Effects of Alkali Change in mass | ASTM D 471 CGSB 41-GP-34M | 4.5% |
Ultimate Elongation | ASTM D 471 CGSB 41-GP-35M | 280% |

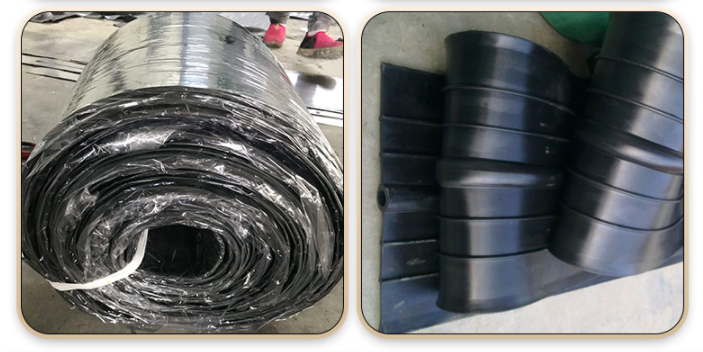

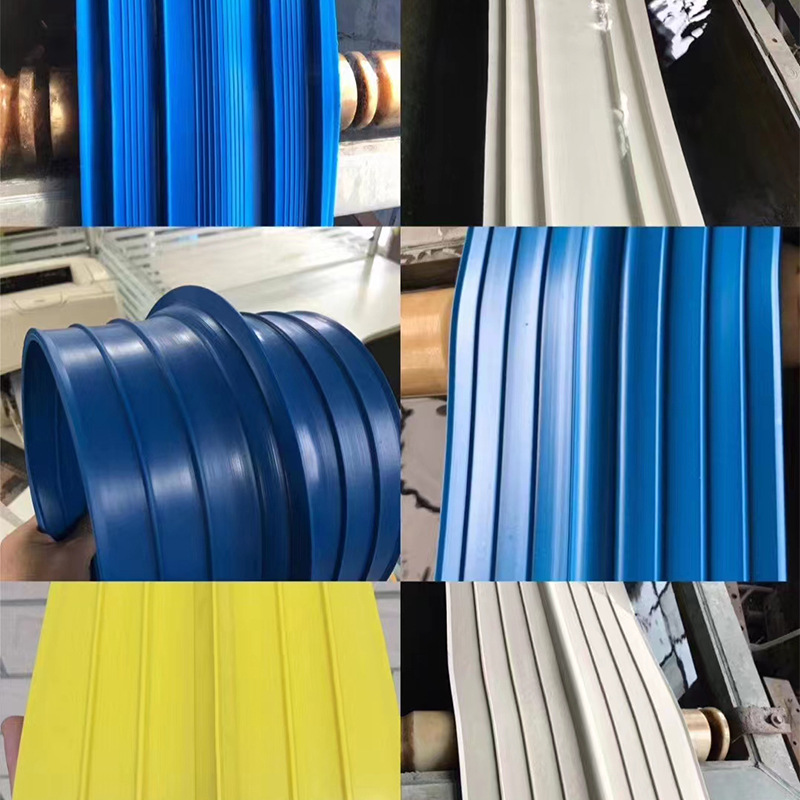

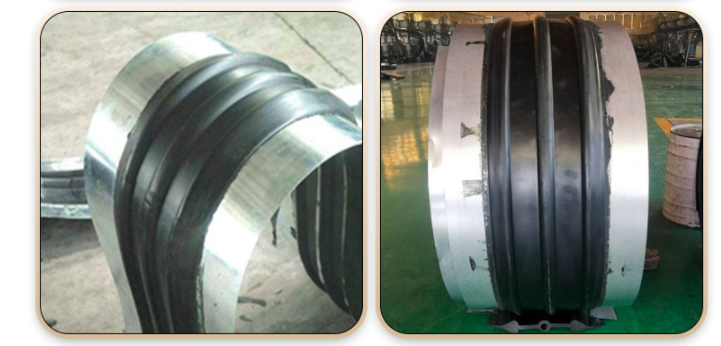

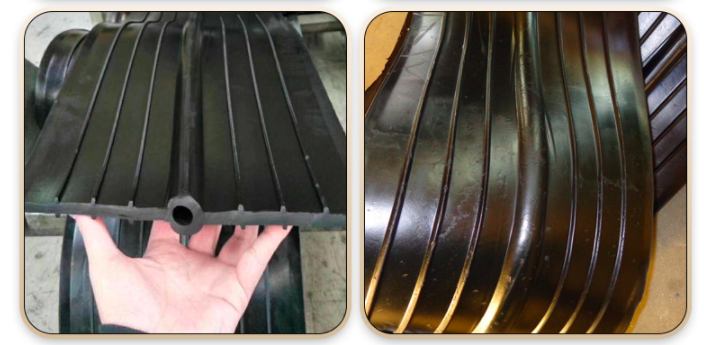

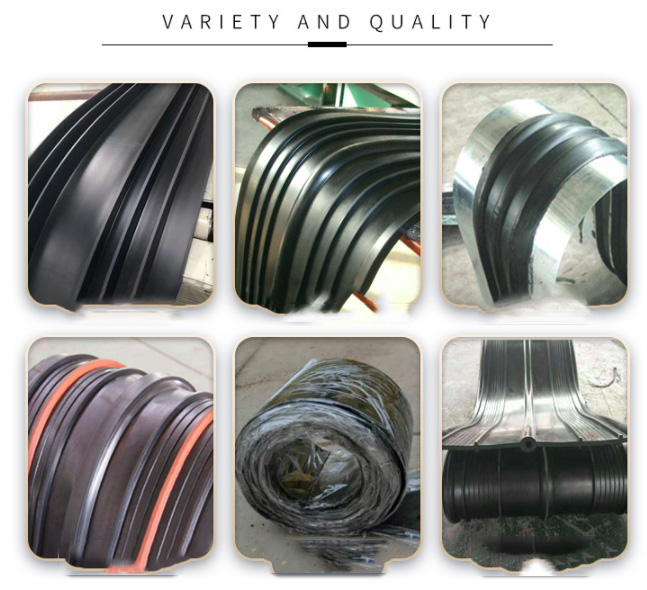

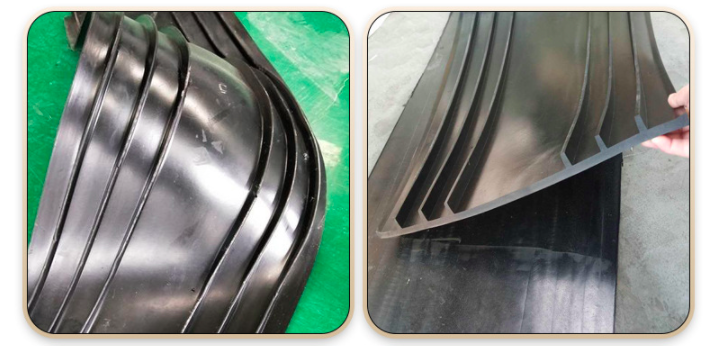

Products Picture
