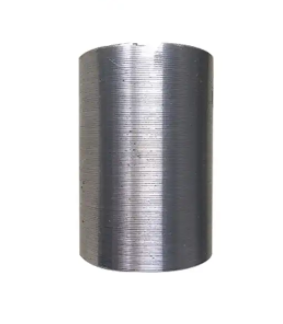

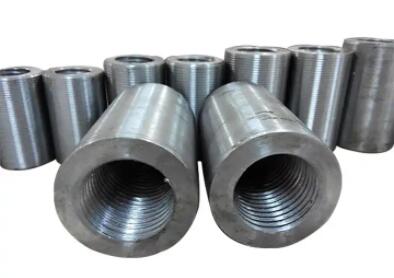

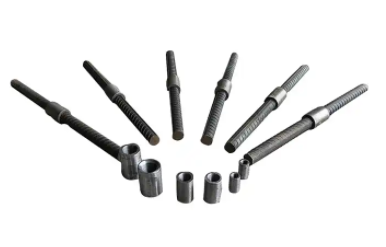

Steel Parallel Thread Rebar Coupler for Online Retailing and wholesale
Four Steps Process Splicing rebars with coupler1) Cutting off the end of rebar;
2) working the end of rebars by thread machine
3)Making parallel threads;

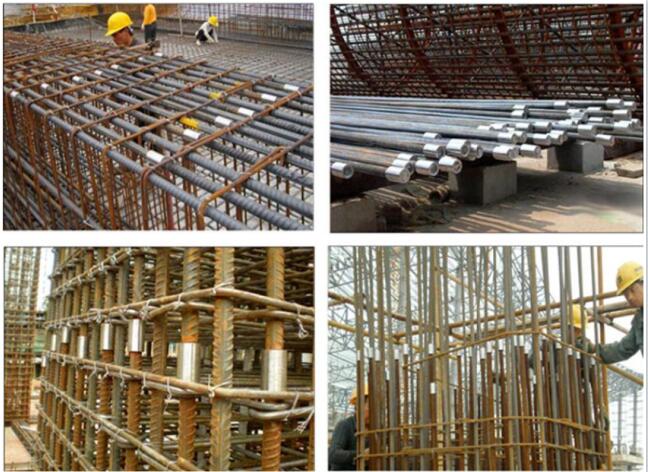

4) Splicing rebars by coupler.
Rebar size | D16mm | D18mm | D20mm | D22mm | D25mm | D28mm | D32mm | D36mm |
Outer diameter | 25mm | 28mm | 30mm | 32mm | 37mm | 41mm | 47mm | 54mm |
Length | 40mm | 45mm | 50mm | 55mm | 60mm | 70mm | 80mm | 90mm |
Thread pitch | 2.5 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 3.5 |
Thread angle (degree) | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 |
G/W(KGS) | 0.086 | 0.125 | 0.152 | 0.200 | 0.284 | 0.400 | 0.602 | 0.940 |
Advantages of Steel Parallel Thread Rebar Coupler
1) YG rebar coupler is made of high-quality carbon structural steel 45#/40Cr with reasonable design, advanced technology, high precision and reliable connection quality.
2) We design the couplers of all specifications based on the strength requirements of HRB500 steel bars. Couplers are applicable to all screw thread steel on grade HRB335,HRB400,HRB500,HRB600.
3) The parallel rebar coupler system is one of the smallest and the most cost-effective coupler systems in our range, when used on large scale, high coupler volume projects.
4) The end of each bar to be joined is cut square and enlarged by cold forging. This increases the core
diameter of the bar to ensure that the joint is stronger than the bar.
5) The ends of the bars are enlarged and a parallel thread is cut onto the ends to suit the threaded coupler. The coupler is assembled using a pipe or chain wrench. Calibrated wrenches are not necessary.
6) Good low temperature resistance, and could pass the -40 degree low temperature test.

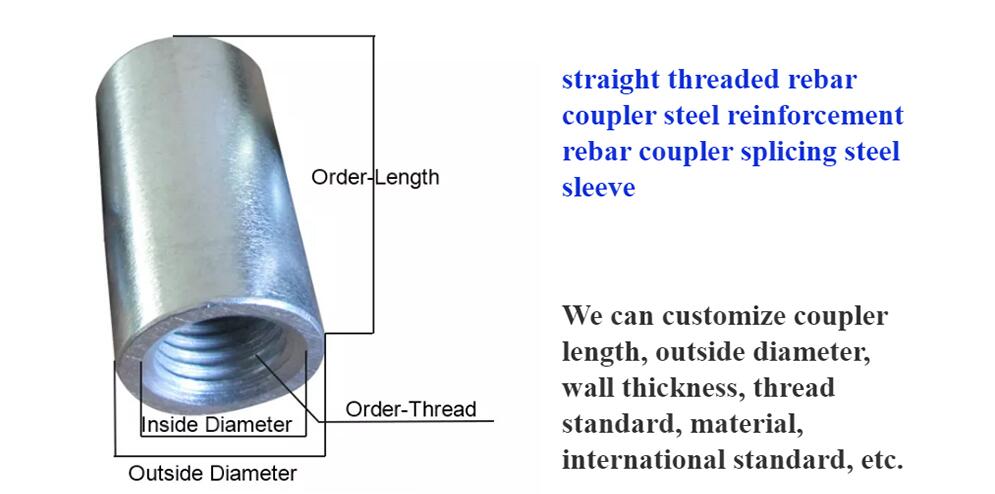

Product name: | Rebar Connection Extension Straight Thread Couplers Splice joint Sleeve |
Project Solution Capability: | Total solution for projects |
Fit For Rebar Diameter | 12mm-50mm |
Market: | South&north America/Europe/ Asia/ Australia/Africa and etc. |
Application: | metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc |
Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; |
Customized | OEM/ ODM |
MOQ | 1000PCS |
Payment | T/T, etc |
Test Equipment | Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester |
Main Features:
1.Use solid 45# carbon steel as raw material and Round Bar Cutting
2. High Tensile & yield strength≥630MPa , reach JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
3. Easy operation & environmentally friendly.
4. Could be used in the every orientation connection of reinforcing bars with same or different Diameter.
5. Good low temperature resistance, and could pass the -40 degree low temperature test
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
