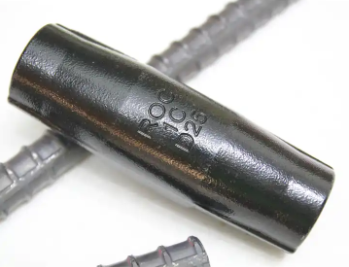

Rebar Coupler

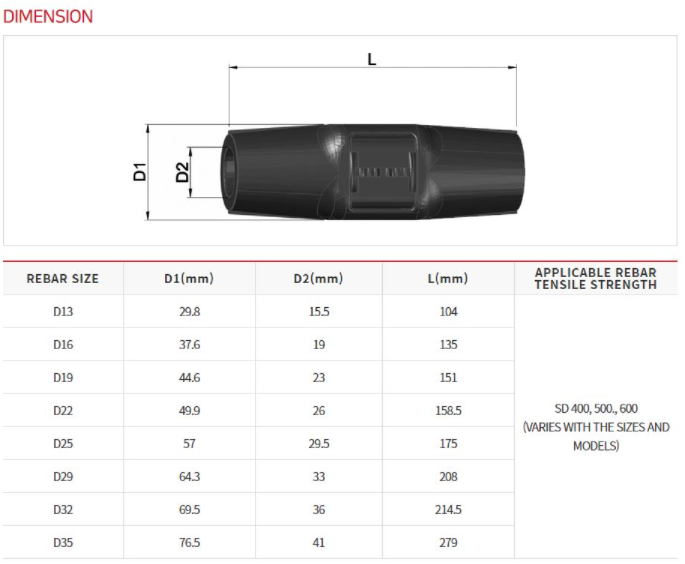

The Parameter of bolt lock rebar coupler
Diameter
(mm)
Out diameter
(mm)
Length
(mm)
Lock shear bolt  quantity
(pcs)
Tensile strength
Weight
(kg)
Serrated grip rail  quantity(pcs)
12
34
140
6
135% yield strength
0.75
2
16
43
160
6
135% yield strength
1.08
2
20
48.3
204
8
135% yield strength
1.69
2
25
54
258
8
135% yield strength
2.51
2
32
71
312
8
135% yield strength
6.07
2
40
81
484
12
135% yield strength
11.63
2

The advantage of Bar bolt lock coupler:

Quick and easy to install,Bar Lock requires no special installation equipment. The high strength couplers are excellent for new concrete construction or rehab projects. The Bar Lock rebar coupler system provides a cost effective method for splicing smooth or deformed rebar in tension and/or compression applications.

System Compliance
Bar Lock couplers are test certified to exceed the requirements of, and are prequalified, approved or recognized by the following building approval agencies:
ACI 318-II Type 2
ICC AC-133
Caltrans Service Splice
Minstries of Transportation, Canada
Amy Corps of Engineers CW 03210
State Departments of Transportation
AASHTO
International Building Code (IBC)City of Los Angeles Department of Building and Safety

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
