Rebar Coupler



Products Description

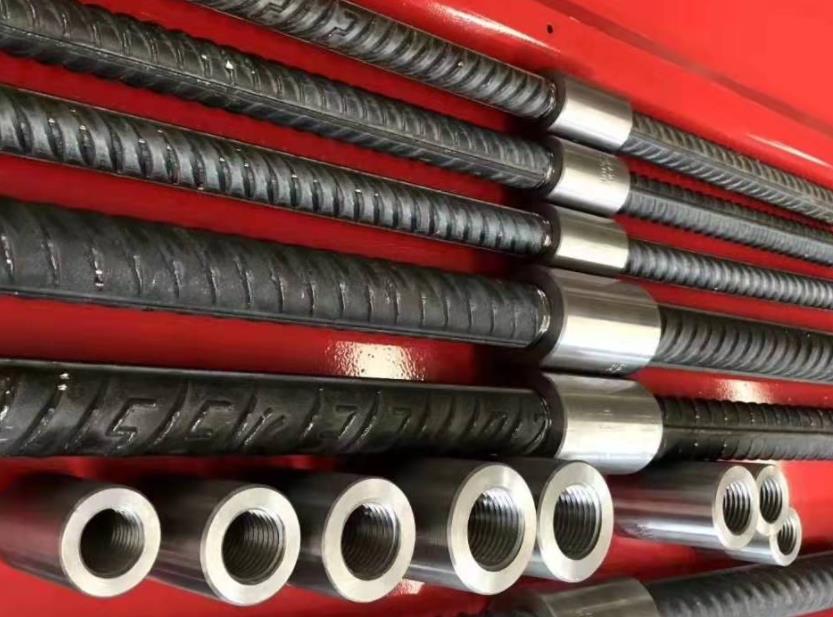

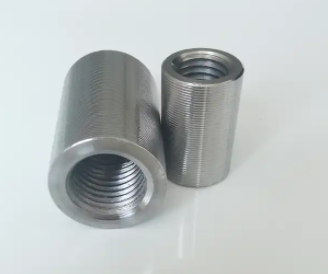

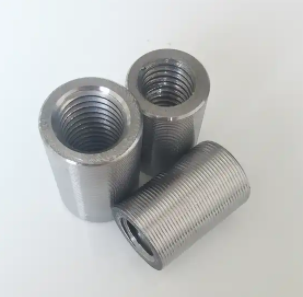

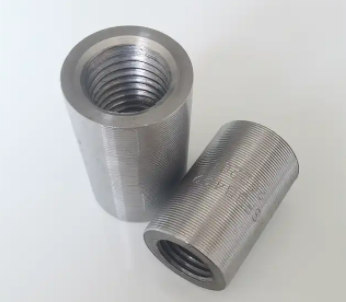

High Quality Steel Bar Connection Rebar Coupler

1.It mainly connect HRB400 and HRB500 hot rolled ribbed bars with diameter 12-50mm; 2.45# high quality carbon structural steel or 40Cr as material; 3. Standard type, left-handed and right-handed type, reducing type, wide mouth type, nut locking type, altogether more than one hundred types; 4. Satisfy the rebar splicing needs of longitudinal, traverse and slant ect in project of bridge, tunnel and other construction projects; 5.Taper thread coupler, double thread coupler, weldable coupler, upsetting parallel thread coupler or other type rebar coupler as per customer’s requirement.
Product Paramenters
Coupler Size
Outer Dia ±0.5mm
Length ±1mm
Thread Angle
Weight/Pc (kg)
D12
20.5
35
60°
0.036
D14
21.5
37
60°/75°
0.068
D16
24.5
39
60°/75°
0.099
D18
27.5
44
60°/75°
0.125
D20
29.5
49
60°/75°
0.180
D22
33
54
60°/75°
0.205
D25
37.5
60
60°/75°
0.317
D28
41.5
64
60°/75°
0.399
D32
47.5
74
60°/75°
0.640
D36
54
84
60°/75°
0.900
D40
59
89
60°/75°
1.099
D50
74
125
75°
1.298

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
