Geomembrane
Product Introduction:
HDPE Geomembrane is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for Aquaculture Pond,solid waste containment, mining and water containment,artificial Lake applications. BPM HDPE geomembrane liner is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our HDPE geomembrane liner with excellent resistance to UV radiation and is suitable for exposed conditions.

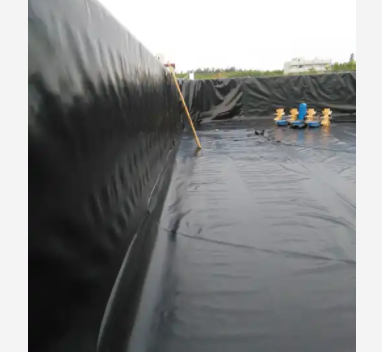

HDPE Geomembrane liner is widely used for canal, aquaculture, irrigation ponds and remediation, landfills, waste water treatment lagoons, oil and gas exploration, power plants, etc al.
Product Feature:
Thickness | 0.75mm-3.0mm |
Surface | Both side smooth/both side textured One side textured one side smooth, or as your request |
Length | 50m/roll,100m/roll,150m/roll or as your choice |
Material | LDPE, LLDPE, HDPE, EVA, ECB, PVC , CPE |
Width | 1m--6m or as customers’ requests |
Color | White/Black |
Technical data：
Item | Value |
Thickness mm | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
Density g/cm3 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 |
Tensile Yield Stength(TD/MD) % | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
Tensile Stength at Break(TD/MD)% | ≥8 | ≥10 | ≥13 | ≥16 | ≥21 | ≥26 | ≥32 |
Elongation at Yield(TD/MD) % | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
Elongation(TD/MD) % | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 |
Angle Tear Load(TD/MD) N | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
Puncture Strength N | ≥200 | ≥270 | ≥335 | ≥400 | ≥535 | ≥670 | ≥800 |
Tensile Load Stress Cracking h | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
Carbon Black Content % | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 |
Oxidation Induction Time min | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 |
85ºC Thermal Aging % | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Product Introduction:
HDPE Geomembrane is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for Aquaculture Pond,solid waste containment, mining and water containment,artificial Lake applications. BPM HDPE geomembrane liner is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our HDPE geomembrane liner with excellent resistance to UV radiation and is suitable for exposed conditions.
HDPE Geomembrane liner is widely used for canal, aquaculture, irrigation ponds and remediation, landfills, waste water treatment lagoons, oil and gas exploration, power plants, etc al.
Product Feature:
| Thickness | 0.75mm-3.0mm |
| Surface | Both side smooth/both side textured One side textured one side smooth, or as your request |
| Length | 50m/roll,100m/roll,150m/roll or as your choice |
| Material | LDPE, LLDPE, HDPE, EVA, ECB, PVC , CPE |
| Width | 1m--6m or as customers’ requests |
| Color | White/Black |
Technical data：
| Item | Value |
| Thickness mm | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density g/cm3 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 | ≥0.940 |
| Tensile Yield Stength(TD/MD) % | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile Stength at Break(TD/MD)% | ≥8 | ≥10 | ≥13 | ≥16 | ≥21 | ≥26 | ≥32 |
| Elongation at Yield(TD/MD) % | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Elongation(TD/MD) % | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 |
| Angle Tear Load(TD/MD) N | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture Strength N | ≥200 | ≥270 | ≥335 | ≥400 | ≥535 | ≥670 | ≥800 |
| Tensile Load Stress Cracking h | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
| Carbon Black Content % | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 | 2.0˜3.0 |
| Oxidation Induction Time min | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 |
| 85ºC Thermal Aging % | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
