Geomembrane



Product Feature

1)     Good physical and mechanic performance
2)     High tearing resistance, strong deformation adaptability
3)     Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4)     Good adaptability to high and low temperature, non-toxicity, long service life
5)     Good waterproof, drainage, anti-seepage and damp proof effects
6)     Complete width and thickness specifications, low cost and easy installation.



Product Application Range

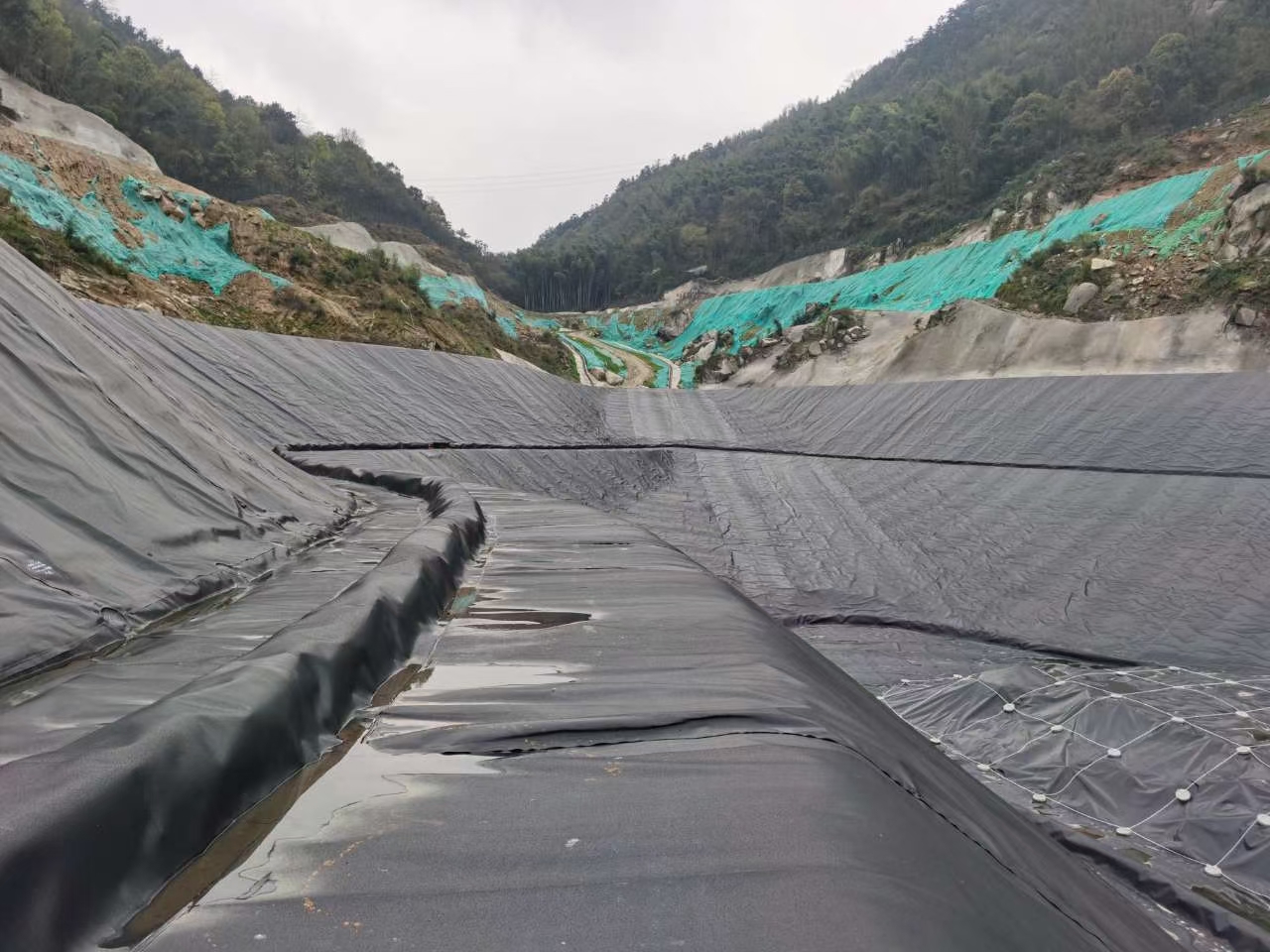

1)     Domestic and Hazardous Waste landfills

2)     Landfill closures
3)     Heap leach mining and tailing dams
4)     Biogas Management
5)     Floating Covers

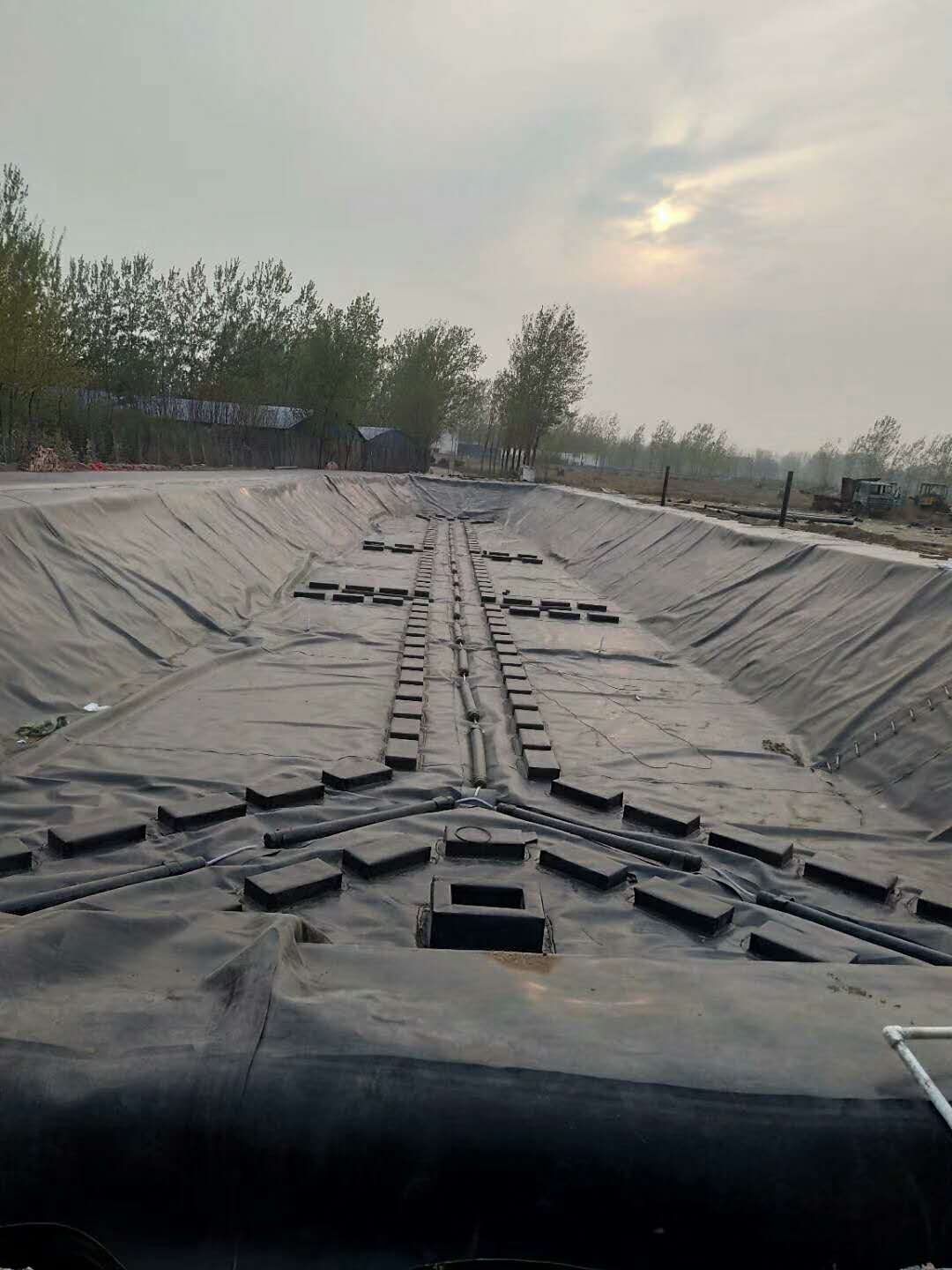

6)     Waste water treatment reservoirs
7)     Water conveyance channels and reservoirs
8)     Temporary tanks
9)     Industrial sludge storage and drying ponds
10)  Secondary containment
11)  Architectural ponds and lakes
12)  Brine evaporation ponds
13)  Aquaculture ponds
14)  Food and water grade reservoirs and tanks



Geomembrane is an extremely low permeability synthetic membrane lining that can be used to control fluid or gas migration in artificial engineering, structures or systems. It is a kind of polymer chemical flexible material, small specific gravity, strong elongation, high adaptability to deformation, corrosion resistance, low temperature resistance, good frost resistance.

Thickness
0.5mm
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
Width
1m  ~  8m
Length
50m ~ 100m
Material
HDPE / LDPE / LLDPE / EVA
Spices

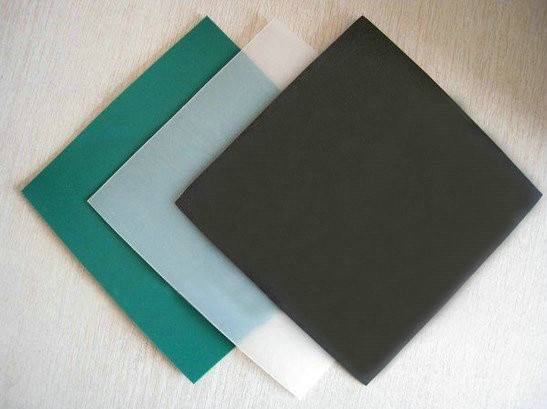

Smooth / Rough / Composite Geomembrane
Spec Properties
GMS0.5
GMS0.75
GMS1.0
GMS1.25
GMS1.5
GMS2.0
Thickness ( mm )
0.5mm
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
Density ( ≧g/cc )
0.94
Carbon Black Content ( % )
2.0 ~ 3.0
Tear Resistance ( N )
63
93
125
156
187
249
Puncture Resistance ( N )
134
200
267
333
400
534
Stress Crack Resistance ( Hrs )
500
Tensile Yield Strength ( N/mm )
7.5
11
15
18
22
29
Tensile Break Strength ( N/mm )
5
8
10
13
16
21
Yield Elongation ( % )
12
Break Elongation ( % )
100

HDPE geomembrane liner pond liner  for mining reservoir dam fish pond shrimp farm HDPE

HDPE geomembrane liner pond liner  for mining reservoir dam fish pond shrimp farm HDPE



FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
