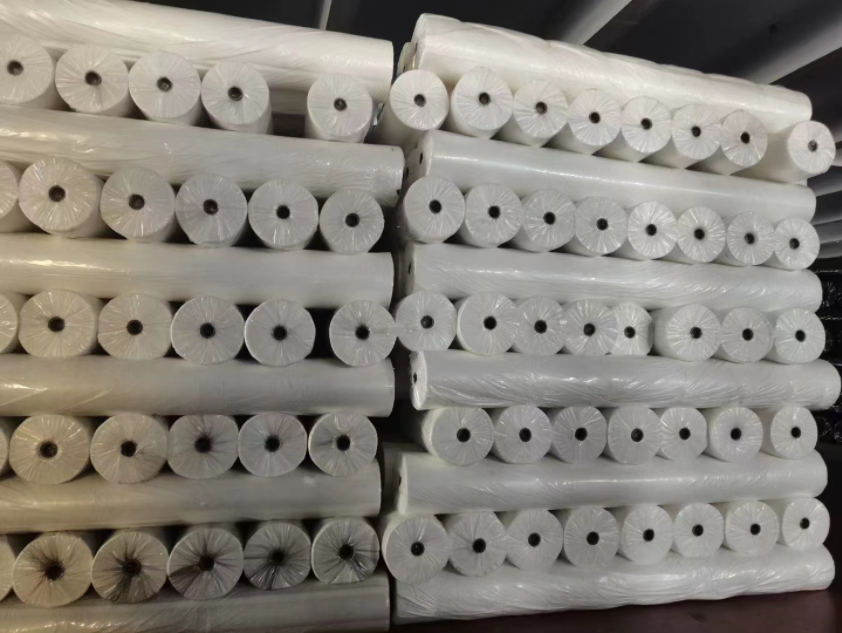

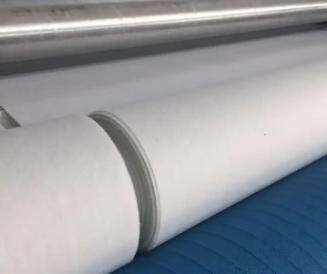

Geotextile
Geotextiles are permeable nonwoven fabrics used to
separate,filter,reinforce, protect or drain.Geotextiles allow filtration
or separation of granular layers in roads and rail applications,used to

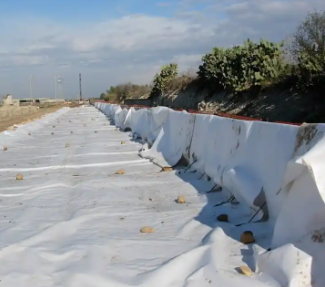

protect membranes in landfill applications,used in coastal defence
applications and used in landscaping to protect surfaces and structures
from weeds and root growth.
Geotextiles are availabel as woven and non-woven .As liner protection,
against physical damage, the non wovens are normally the answer.They are
made up of fibers of polyester or polypropylene in random directions

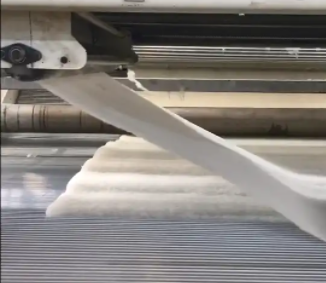

and punched together by needles during the manufacturing
process.Geotextiles are commenly used to separate layers like clay and
drainage and to protect liner from damage.
Product Feature:
product name | geotextile |
Product material | pe or pp |
product color | white,black,gray..etc |
thickness | 0.9-5mm |
characteristics |
Permeable, filter, durable, corrosion resistant, oxidation resistant, easy construction |
weight | 100-800g/sqm |
Product use |
Railways, highways, sports venues, DAMS, water and soil construction, tunnels, coastal beaches, reclamation, environmental protection and so on |
packing | Plastic woven bag |
Technical data:
item specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
Quality deviation per unit acreage | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
Thickness mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 |
Width deviation % | -0.5 | ||||||||||
Mightiness at break KN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 |
Elongation at break % | 25-100 | ||||||||||
CBR bursting strength KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 |
Effective aperture | 0.07-0.20 | ||||||||||
Vertical osmotic coefficient cm/s | K*(10¯¹*10¯³) | ||||||||||
Tearing strength KN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
