Geotextile

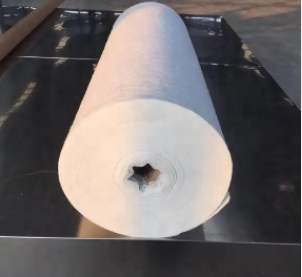

Geotextile

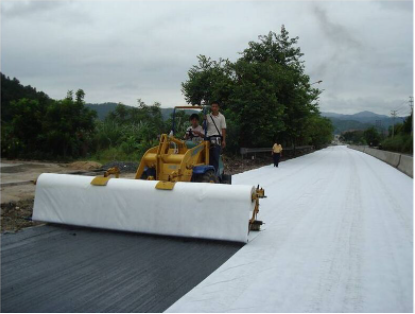

Geotextiles are permeable nonwoven fabrics used to separate,filter,reinforce, protect or drain.Geotextiles allow filtration or separation of granular layers in roads and rail applications,used to protect membranes in landfill applications,used in coastal defence applications and used in landscaping to protect surfaces and structures from weeds and root growth.

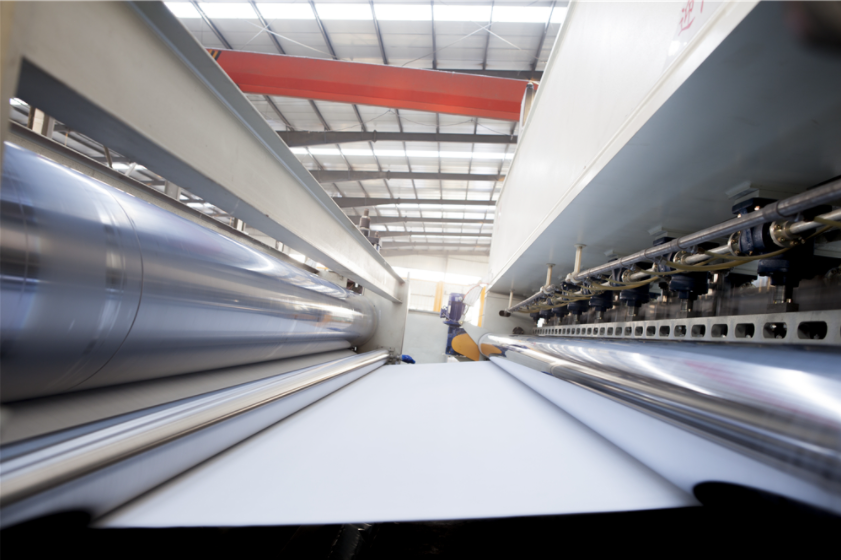

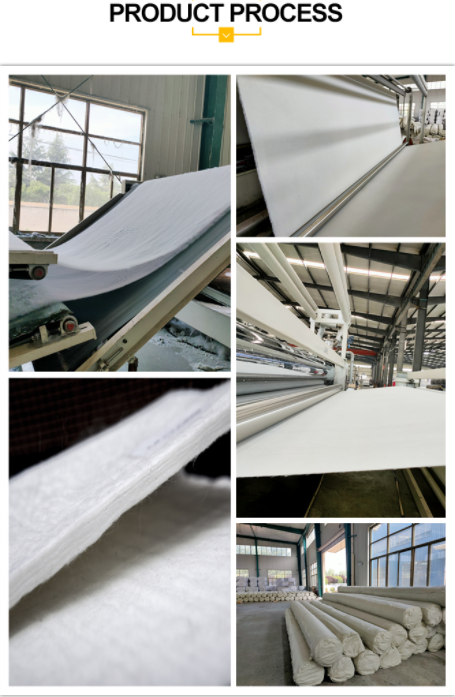

Geotextiles are availabel as woven and non-woven .As liner protection, against physical damage, the non wovens are normally the answer.They are made up of fibers of polyester or polypropylene in random directions and punched together by needles during the manufacturing process.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.
Product Feature:

product name geotextile
Product material pe or pp
product color white,black,gray..etc
thickness  0.9-5mm
characteristics Permeable, filter, durable, corrosion resistant,
oxidation resistant, easy construction
weight 100-800g/sqm

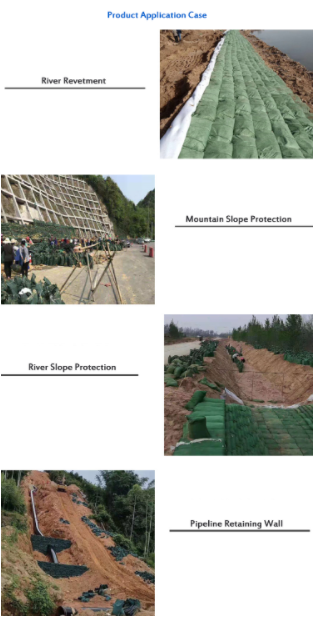

Product use Railways, highways, sports venues, DAMS,
water and soil construction, tunnels,
coastal beaches, reclamation,
environmental protection and so on

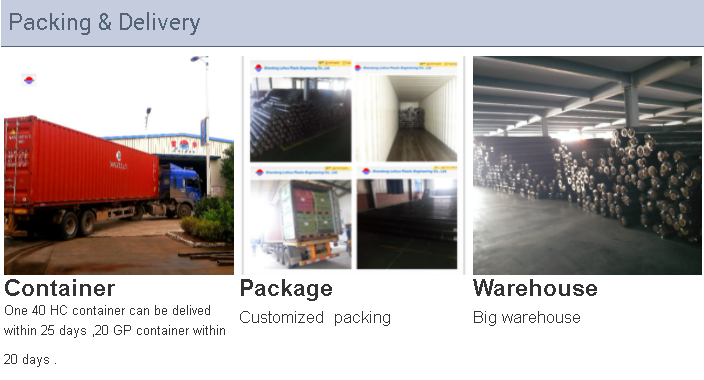

packing Plastic woven bag


Technical  data:

item specification 100 150 200 250 300 350 400 450 500 600 800
Quality deviation
per unit acreage
-8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6
Thickness mm 0.9 1.3 1.7 2.1 2.4 2.7 3 3.3 3.6 4.1 5
Width deviation  % -0.5
Mightiness at break KN/m 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25
Elongation at break % 25-100
CBR bursting strength KN 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
Effective aperture 0.07-0.20
Vertical osmotic coefficient cm/s K*(10¯¹*10¯³)
Tearing strength KN 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6
