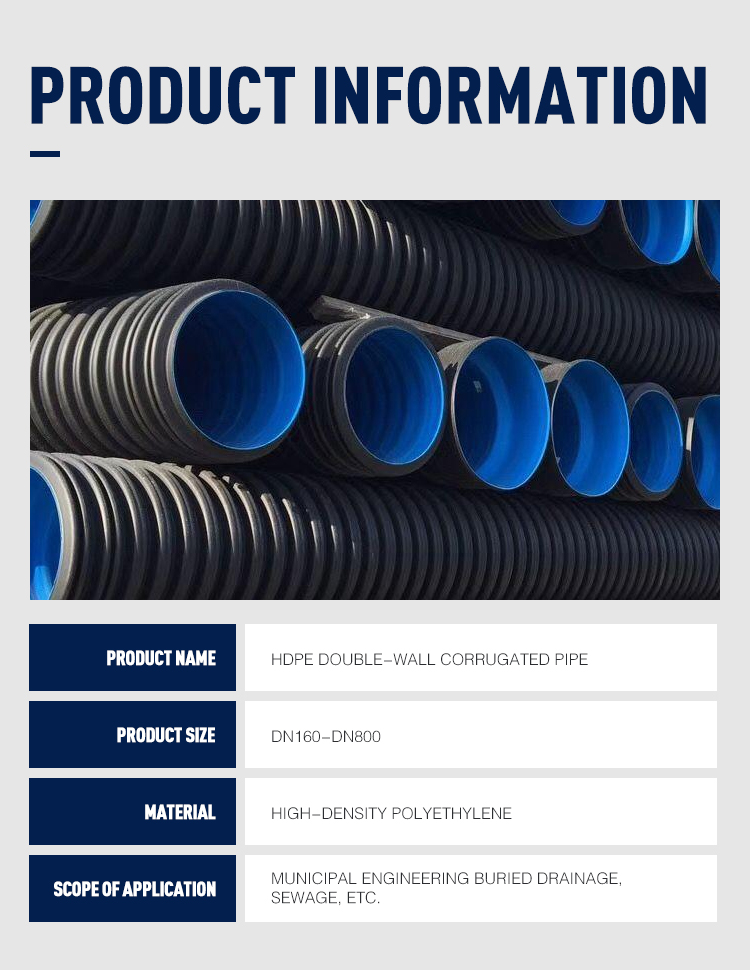

Specification parameters of Factory Direct Price HDPE Double Wall Plastic Corrugated underground Industrial Drainage Pipe
DN/ID | MIN.EVE.OD | MIN.EVE.OD | MIN.LAYER
WALL THICKNESS | MIN.LAYER
WALL THICKNESS | MIN. FLARING LENGTH |
BN/ID200 | 230 | 195 | 2 | 0.8 | 60 |
BN/ID300 | 345 | 294 | 2.5 | 1.2 | 69 |
BN/ID400 | 465 | 392 | 3 | 1.6 | 77 |
BN/ID500 | 580 | 490 | 3.5 | 2 | 85 |
BN/ID600 | 700 | 588 | 4 | 3.5 | 96 |
BN/ID800 | 930 | 785 | 4.5 | 4.5 | 118 |
BN/ID1000 | 1160 | 985 | 6 | 5 | 140 |
BN/ID1200 | 1400 | 1185 | 8 | 5.5 | 162 |
BN/ID1500 | 1755 | 1485 | 10 | 6.5 | 178 |
Do✔
Store pipe on firm and flat surfaces.
Keep pipe and fttings away from sharp objects, heat,and toxic and aggressive materials.
Take carenot tocut,kink,abrade,or otherwise damage the pipe during handling.
Keep protective packaging intact until pipes and fittings are required for use.
Release coils carefully,keeping in mind they may be coiled under tension.Take care when handling pipe under wet or frosty conditions,as the pipe may become slippery.
Temporarily cap cut pipe ends to prevent dirt or other material from entering the pipe.Uncoil pipe and allow it to warm in the sun before burial for ease of installation.
DON"T❌
Throw pipe from delivery vehicles.· Drag pipe or roll pipe coils.
Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive materials.Heat pipe with an open flame.

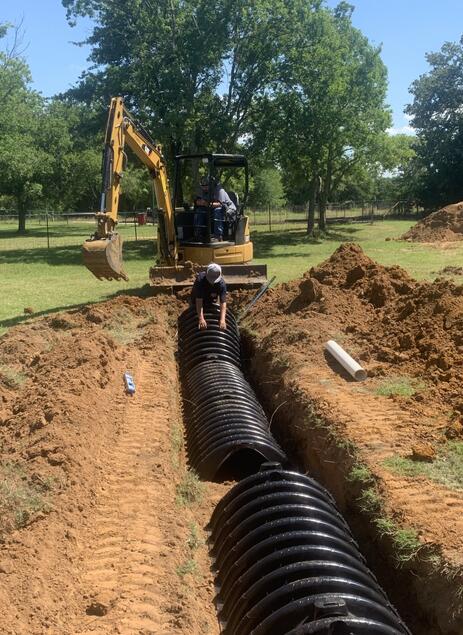

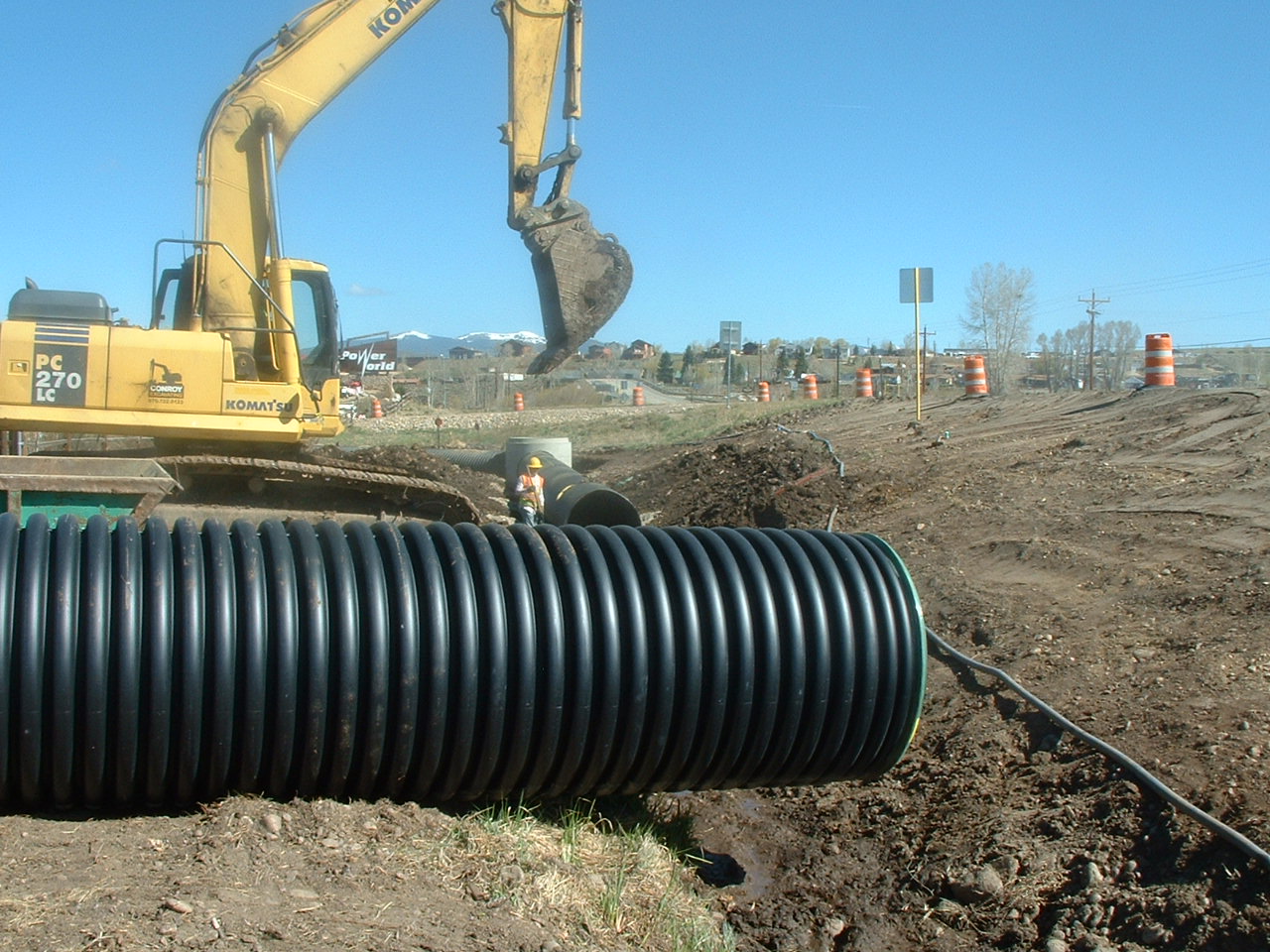

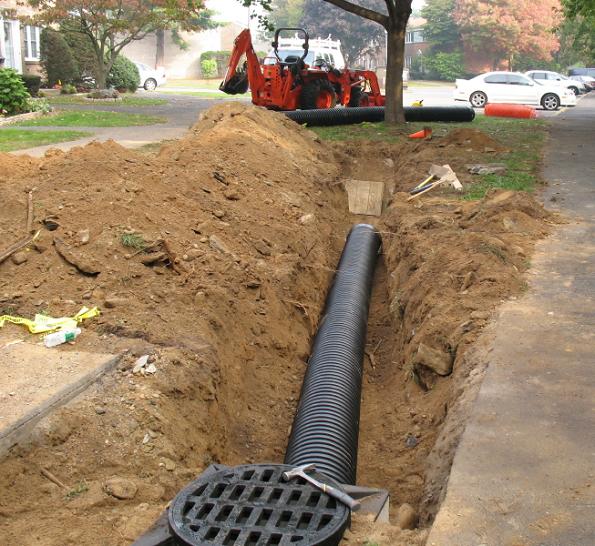

HDPE Pipe ApplicationsFactory Direct Price HDPE Double Wall Plastic Corrugated underground Industrial Drainage Pipe are used in varied industries like Agriculture, Chemical, Industrial, Sewage and Drainage, Sprinkler Irrigation, Industrial Effluents and House services connection works as well.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
