HDPE Winding Reinforced Carat

HDPE strengthened winging pipe

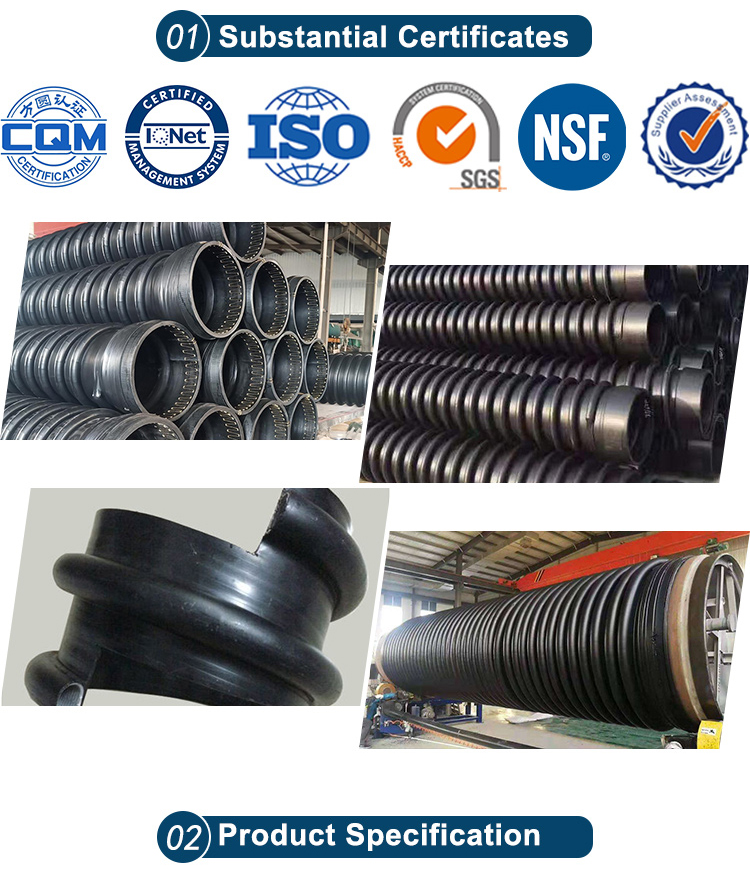

Products Description

Nominal OD (dn)	Min. mean diameter	The wall thickness of the min. layer pressure	Min. inner wall thickness
mm	mm	mm	mm
200	196	1.5	1.7
300	294	1.7	2
400	392	2.3	2.5
500	490	3	3
600	588	3.5	3.5
700	673	4.1	4
800	785	4.5	4.5
900	885	5	5
1000	985	5	5
1100	1085	5	5
1200	1185	5	5
1300	1285	6	5
1400	1385	6	5
1500	1485	6	5
1600	1585	6	5
1700	1685	6	5
1800	1785	6	5
1900	1885	6	5
2000	1985	6	6
2100	2085	6	6
2200	2185	7	7
2300	2285	8	8
2400	2385	9	9
2500	2485	10	10
2600	2585	10	10
2700	2685	12	12
2800	2785	12	12
2900	2885	14	14
3000	2985	14	14

Item	Product Parameter
Ring stiffness (KN/m 2 )	SN4 ≥ 4, SN8 ≥ 8, SN16 ≥ 16
Impact performance	TRL ≤ 10%
Ring flexibility	No delamination, no cracking, no buckling deformation, no dents, no bulges
Creep rate	≤4
Tensile strength of Seams DN/ID ≤ 300 400 ≤ DN/ID ≤ 500 600 ≤ DN/ID ≤ 700 DN/ID ≥ 800	The Minimum endurable tensile force (KN) ≥ 380 ≥ 510 ≥ 760 ≥ 1020
Oven test	No delamination, no cracking on the seams

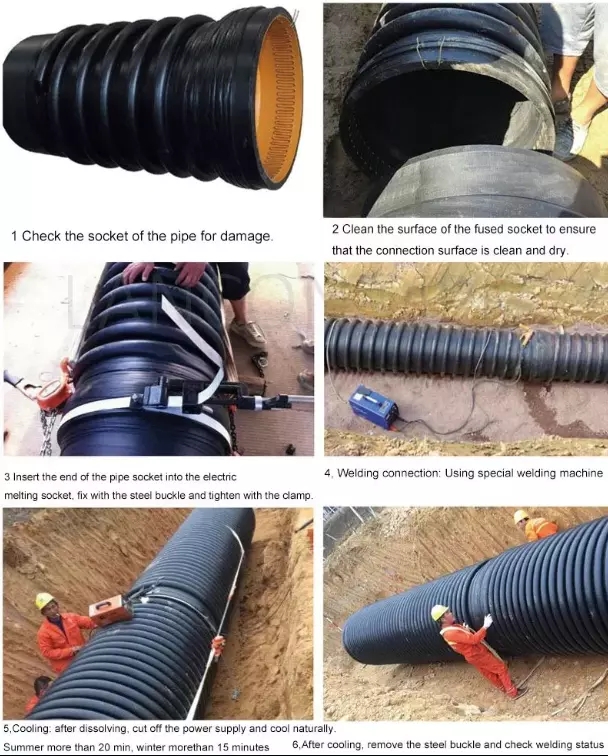

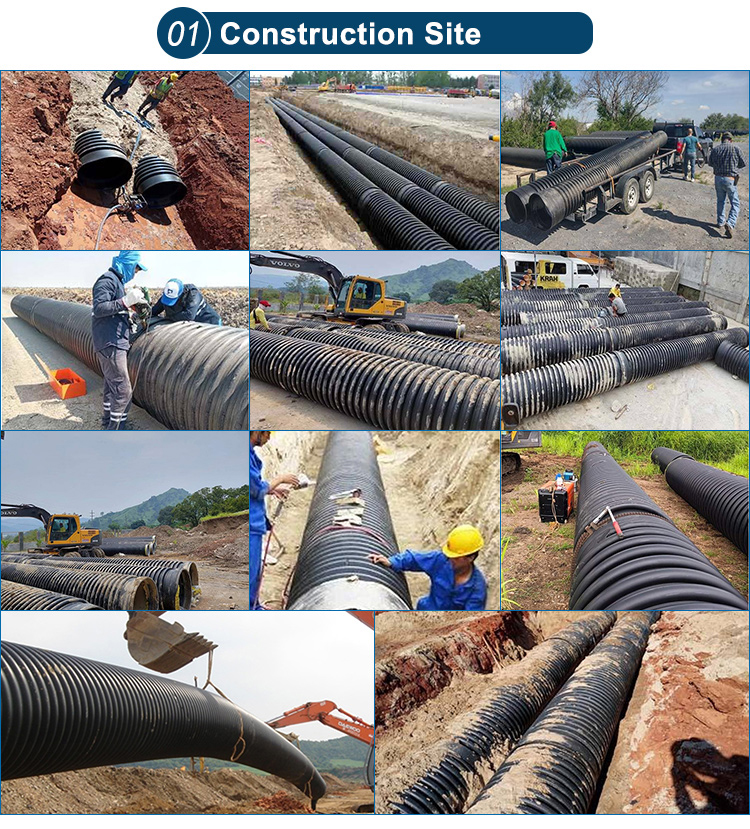

Installation Instructions

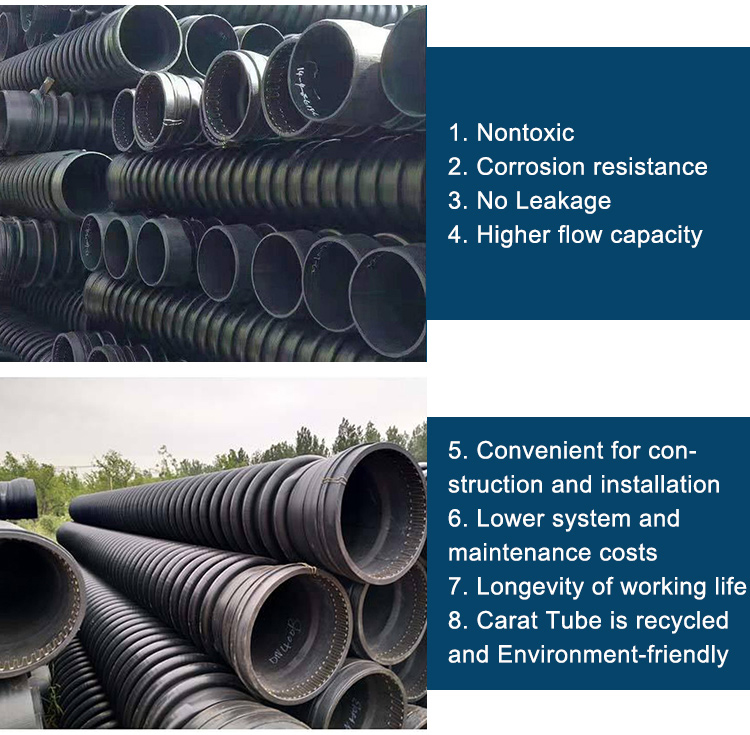

Our Advantages

Application Field



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
