Rebar Coupler



Product name:

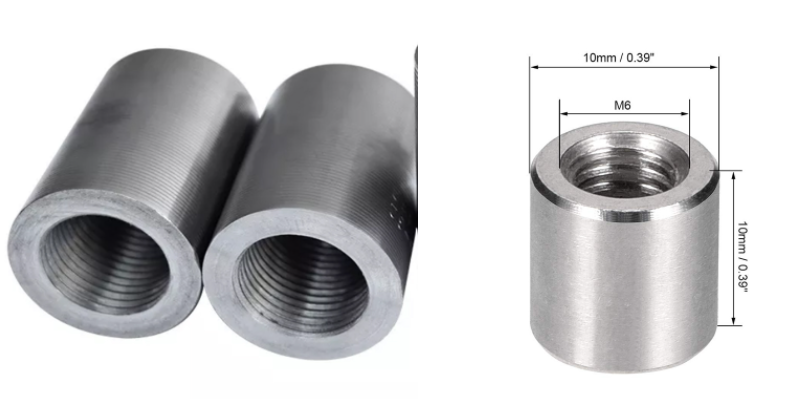

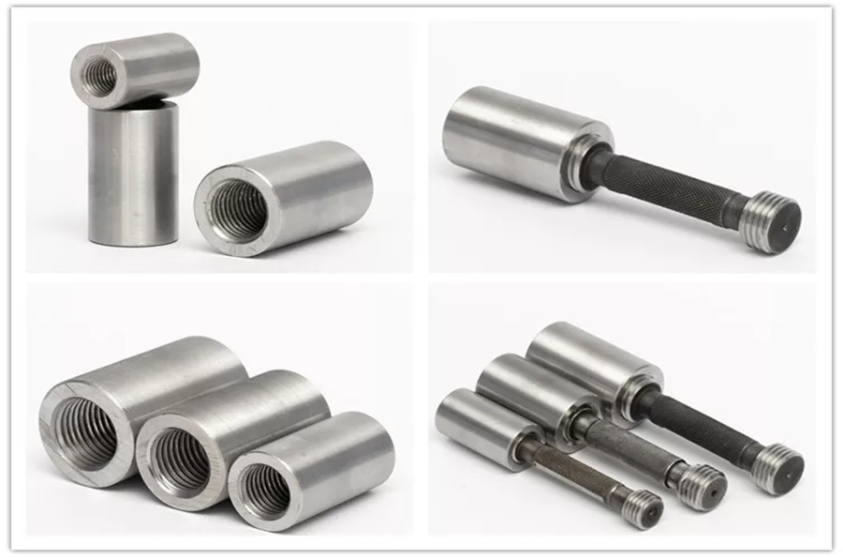

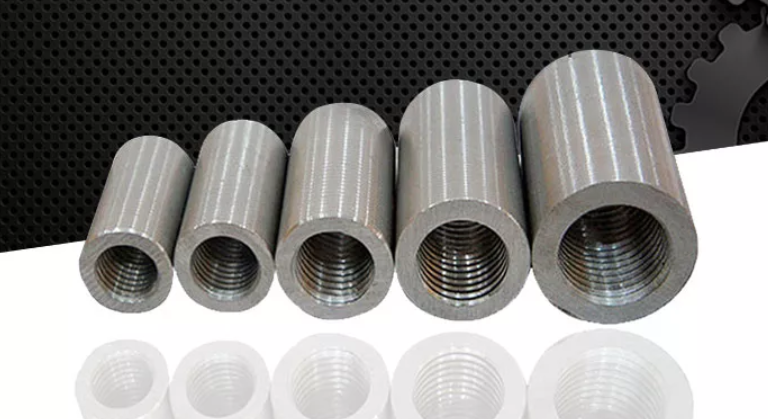

Rebar Connection Extension Straight Thread Couplers Splice joint Sleeve
Project Solution Capability:
Total solution for projects
Fit For Rebar Diameter
12mm-50mm
Market:
South&north America/Europe/ Asia/ Australia/Africa and etc.
Application:

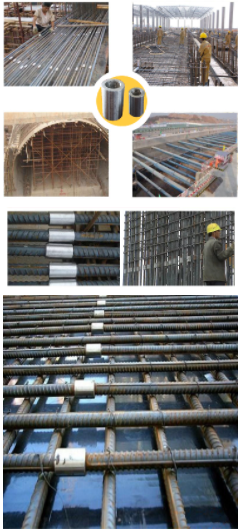

metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc
Trade Term:
FOB/CIF/CFR/CNF/EXW/DDU/DDP
Our advantage:
One-stop shopping; High quality; Competitive price; Timely delivery; Technical support;
Customized
OEM/ ODM
MOQ
1000PCS
Payment
T/T, etc
Test Equipment
Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester

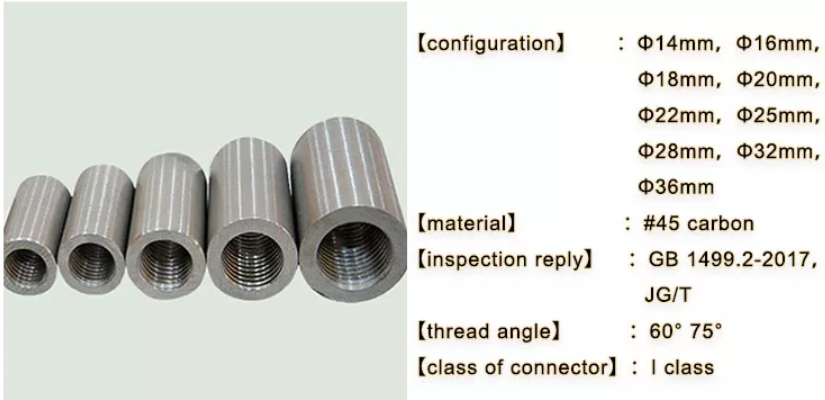

Technical Data of Connect Steel Sleeve:
Rebar size
D16mm
D18mm
D20mm
D22mm
D25mm
D28mm
D32mm
D36mm
Outer diameter
25mm
28mm
30mm
32mm
37mm
41mm
47mm
54mm
Length
40mm
45mm
50mm
55mm
60mm
70mm
80mm
90mm
Thread pitch
2.5
2.5
2.5
2.5
3.0
3.0
3.0
3.5
Thread angle (degree)
60/75
60/75
60/75
60/75
60/75
60/75
60/75
60/75
G/W(KGS)
0.086
0.125
0.152
0.200
0.284
0.400
0.602
0.940









FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
