Rebar Coupler



Product name:
Rebar Connection Extension Straight Thread Couplers Splice joint Sleeve
Project Solution Capability:
Total solution for projects
Fit For Rebar Diameter
12mm-50mm
Market:
South&north America/Europe/ Asia/ Australia/Africa and etc.

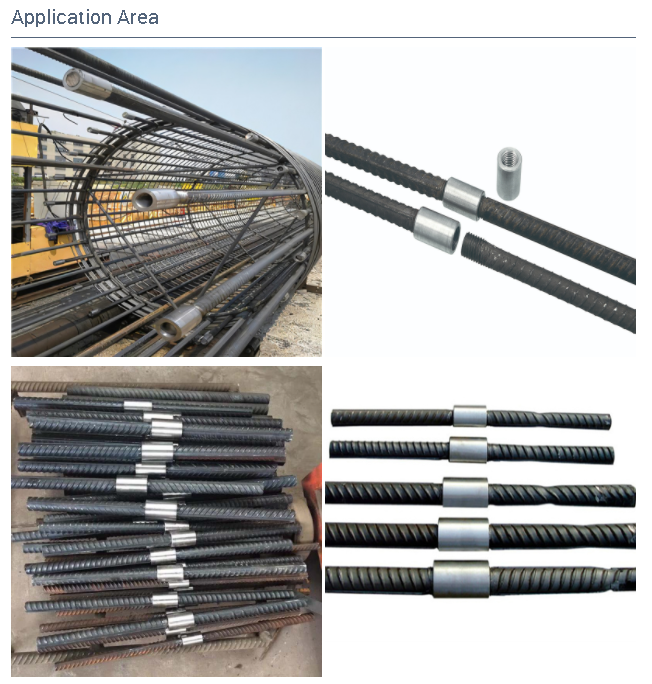

Application:
metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc
Trade Term:
FOB/CIF/CFR/CNF/EXW/DDU/DDP
Our advantage:
One-stop shopping; High quality; Competitive price; Timely delivery; Technical support;
Customized
OEM/ ODM
MOQ
1000PCS
Payment
T/T, etc
Test Equipment
Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester

Main Features:

1.Use solid 45# carbon steel as raw material and Round Bar Cutting
2. High Tensile & yield strength≥630MPa , reach JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
3. Easy operation & environmentally friendly.

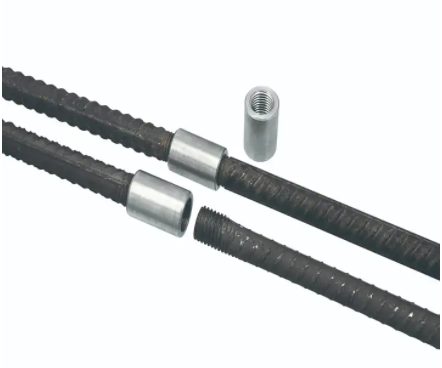

4. Could be used in the every orientation connection of reinforcing bars with same or different Diameter.
5. Good low temperature resistance, and could pass the -40 degree low temperature test

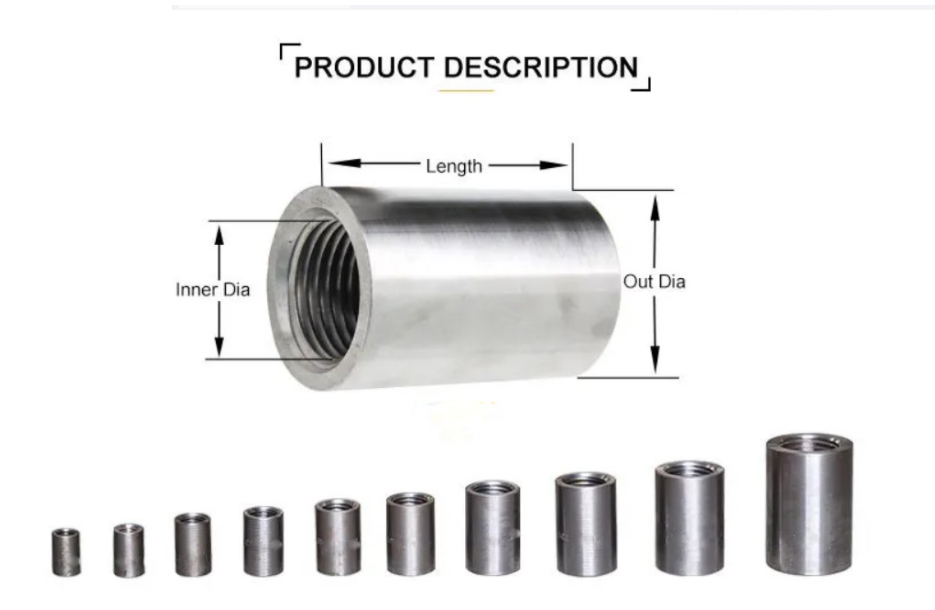

Model
Specification
N. Weight
(kg)
Thread
Pitch
Thread
Angle
Packing
(pcs/bag)
O. D.
Length
Φ16
Φ24.0
43
0.0936
2.5mm
75°/ 60°
18
Φ18
Φ27.0
47
0.1286
2.5mm
75°/ 60°
13
Φ20
Φ31.0
52
0.1938
2.5mm
75°/ 60°
10
Φ22
Φ33.0
57
0.2296
2.5mm
75°/ 60°
90
Φ25
Φ37.0
63
0.3106
3.0mm
75°/ 60°
70
Φ28
Φ41.0
67
0.4024
3.0mm
75°/ 60°
50
Φ32
Φ47.0
77
0.5979
3.0mm
75°/ 60°
35
Φ36
Φ54.0
85
0.8854
3.0mm
75°/ 60°
25
Φ40
Φ59.0
95
1.2700
3.0mm
75°/ 60°
20











FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:Is the quality of your products stable?

A:The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.

Q:Can you do OEM?

A:Yes, of course. We can produce the products as per your request.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
